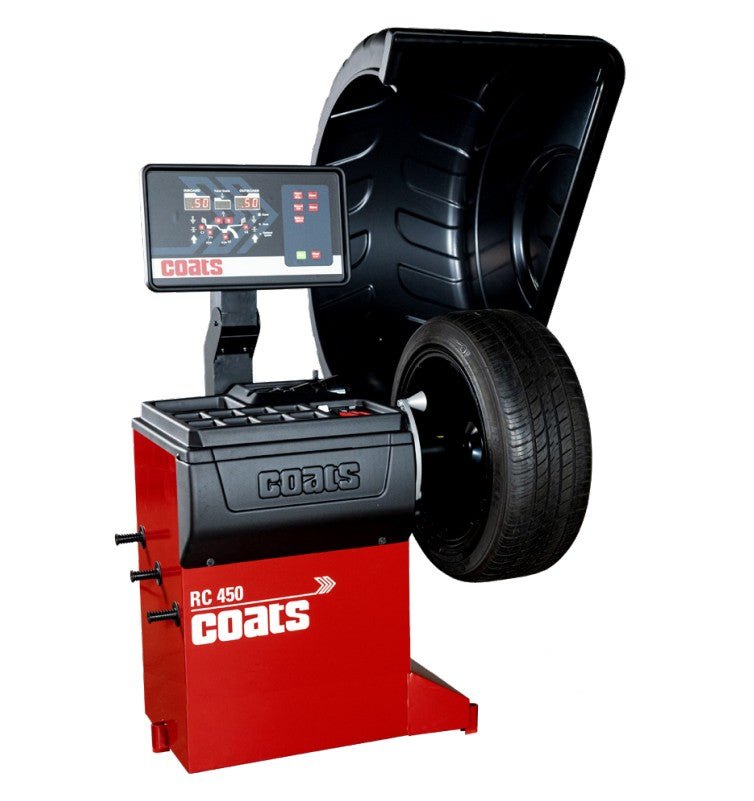

Coats RC 450 Wheel Balancer

The RC 450 balancer is compact wheel balancer for passenger car and light truck OEM fitments. They’re the answer for aftermarket shops with tight space requirements or need extra capacity in busy seasons. With your existing shop space and power setup, your techs can provide wheel balancing services. This model is suitable for OEM fitments that run on standard 115V power—ready to plug in and get to work right away, no additional outlet required. The RC 450 is an easy to learn and use 2D balancer that gets the job done without a space burden, suitable for OEM fitments that run on standard 115V power—ready to plug in and get to work right away, no additional outlet required. It's made for durability and reliability, with a touch panel that holds up to repetitive use in any shop environment. It always shows any residual static unbalance to serve as a final quality check, and gives techs an opportunity to fix the static unbalance and give customers a smooth ride.

Features:

• 6 o’clock Laser Line for Weight Placement - The built-in laser projects at the bottom of the wheel barrel to show techs where tape weights should go, ensuring accurate weight applications. Easy applications, less guesswork.

• Static-On-Screen - All RC Balancers feature STATIC-ON-SCREEN, a final quality check that shows any residual static unbalances which can result from round-off or small weight placement errors. It gives techs an opportunity to fix the static unbalance to give customers a smooth ride the first time, every time.

• 2D Automatic Data Entry - The AD measurement arm on the RC 450 is the primary way to capture dimensions. The RC 450’s smart 2-dimension auto data entry automatically detects the desired weight placement mode, which increases data accuracy and productivity.

Specifications:

• Wheel Diameter Range | 10" - 30"

• Wheel Width Range | 4"- 16"

• Maximum Weight | 130 lbs

• Shaft Diameter | 40 mm

• Footprint | 51.1"w x 58.4"d x 70.3"h

• Interface | Touchpanel with soft touch buttons and LEDs

• Automatic Data Entry | 2 Dimension (Offset Distance and Diameter)

• Electrical Requirements | 115V

• Warranty | 1 year parts, 6 months labor

Included Accessories:

• 8112098 Small A Cone

• 8112099 Medium B Cone

• 8112100 Large C Cone

• 8112101 Large Truck D Cone

• 8113175 Premium Wheel Weight Hammer

• 8309011 Calipers

• 8112103 Hub Nut

• 8112106 Small Pressure Drum with Ring

Optional Accessories:

• 8113277C Light Truck Cone Kit

• 8200000400 Adjustable Pin Plate Set

• 85607503 Premium Quick Hub Nut
