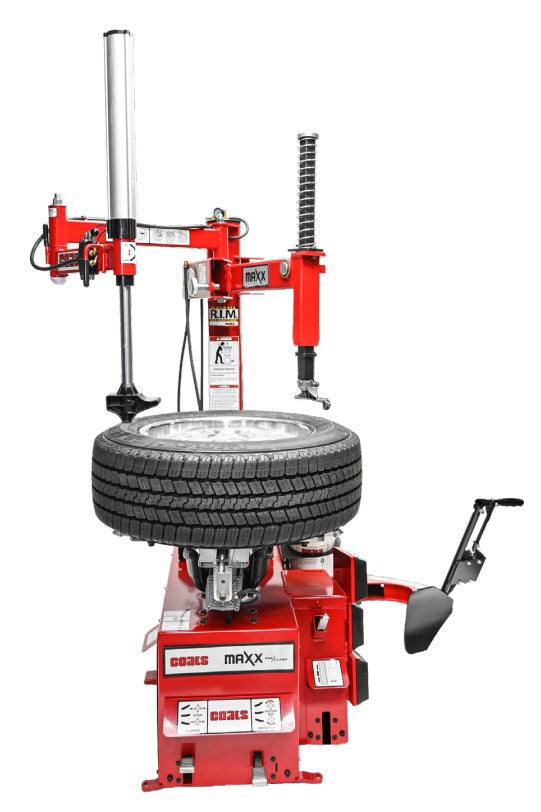

Coats Maxx 80 Tire Changer 220V, 2-Speed

The Coats Maxx 80 tire changer picks up where the X-Series left off but goes further. This unit has been completely redesigned based on extensive customer R&D and represents what it takes to make it in the high-volume tire business. With its new 22-v, 2-Speed motor, the Maxx 80 is primed and ready with 22 RPM to help you get jobs done faster and more efficiently.

Chassis Built to Last
Our re-designed Maxx 70 chassis is built to last and holds up against even the toughest jobs, day in and out.

Double the Inflation
Our Dual-Bead Sealer works on even the most difficult assemblies with ease with more air, more quickly.

Break Beads Hands Free
We've equipped the Maxx 80 with our new bead loosener that you can choose to operate via the hand controls or foot pedal.

Grip Wheels Without Damage
The Grip Max 2.0 clamps work on passenger car, light truck or custom applications to save you time while avoiding damage.

Specifications:

• External Rim Diameter | 6" - 24"

• Max Tire Diameter | 50"

• Max Rim Width | 16"

• Bead Loosening System | Hand & Foot Control

• Nozzle | High Pressure Dual

• Mount/Dismount System | Swing Away Arm & Nylon Duckhead

• Bead Depressor | Robo-Arm

• Air Cylinder Operated | 4 Rim Clamp

• Electric Motor | 220 V, 2 HP

• Air Motor | 110 - 175 psi, 15 scfm

• Footprint | 74"w x 44"d x 88"h

• Ship Weight | 850 lbs
