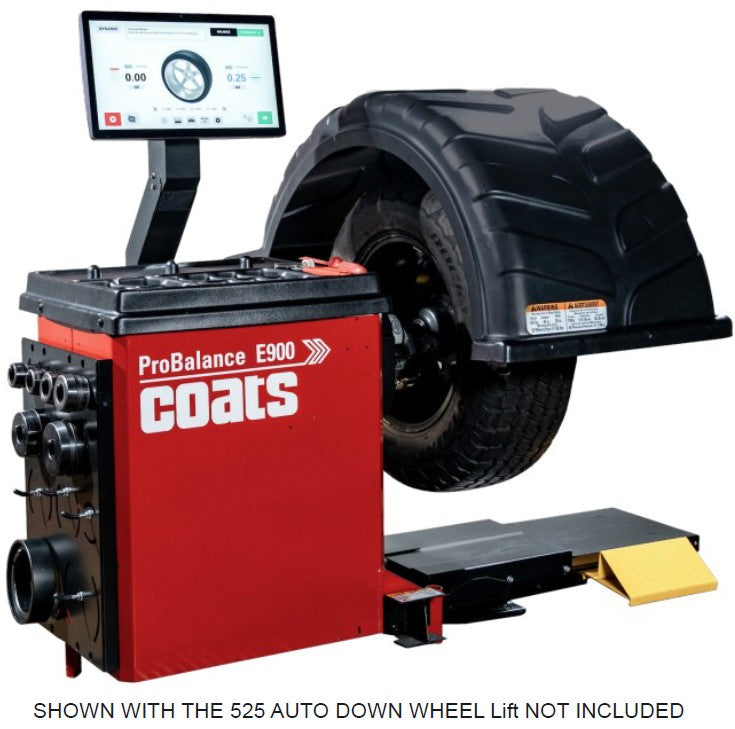

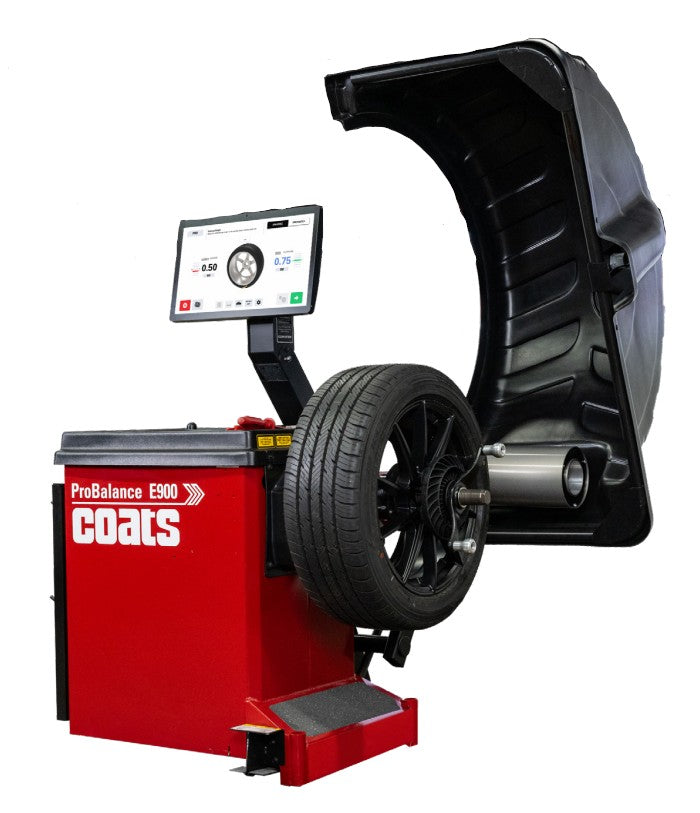

Coats E900 Diagnostic Wheel Balancer

The Coats ProBalance E900 is a high performing direct drive wheel balancer with new diagnostics. It’s up to 10x faster than non-direct drive balancers, and the only premium wheel balancer on the market today with a 10-year warranty on the motor. Eliminate weight and shape related tire vibrations with the Coats E900 by measuring and correcting imbalance and runout issues.

Advanced Technology & Diagnostics
The technology built into the E900 is designed to let techs precisely balance wheels and test drive the wheel assembly on the balancer, assessing tire and wheel geometry to deliver a smoother ride and fewer customer returns for rework.

The Direct Drive
system integrates the wheel balancer motor and spindle into a single, factory pre-balanced assembly with ZERO noise and a 10 year direct drive motor warranty.

Direct Drive Diagnostic Roller & ProMatch
The E900 utilizes a diagnostic roller and ProMatch feature to measure radial runout and address wheel and tire shape and defect issues before weights are applied.

Smart Design, Ultimate Usability
The E900 touchscreen interface feels like you’re using a smart phone. It streamlines data collection, reducing the amount of manual input required for intensive areas like wheel diameter and width.

Specifications:

• Balancing Modes | 5

• Wheel Diameter Range | 8"- 30"

• Wheel Width Range | 2" - 20"

• Maximum Tire Diameter | Up to 44"

• Maximum Tire Weight | 160 lbs

• Shaft Diameter | 40 mm

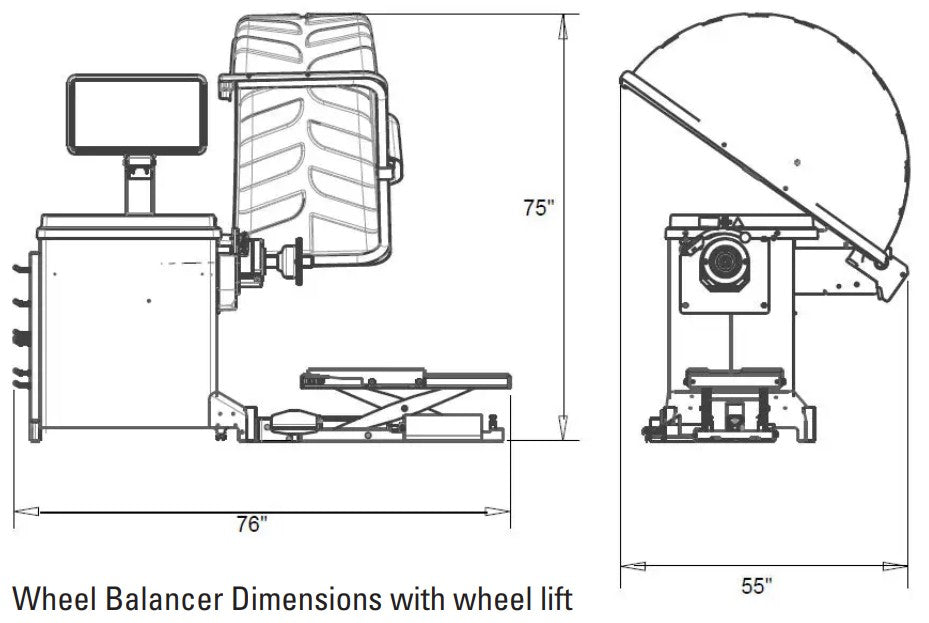

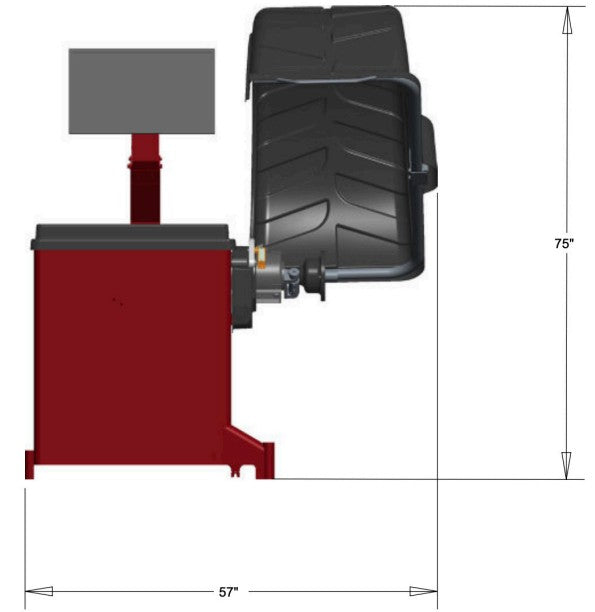

• Footprint | 57"w x 55"d x 75"h

• Interface | Touchscreen

• Automatic Data Entry | Offset/Diameter/Width

• Electrical Requirements | 220v/1ph or 220v/3ph

• Warranty | 3 Year Parts, 6 Months Labor, 10 Year Direct Drive Motor Warranty

• Part Numbers | 800PROE900 - 1ph / 800PROE90001 - 3ph

Includes:

• 85608850 Stud - Weight Tray (3)

• 85609499 Double Sided Collets (2.04"-5.20")

• 8309011 Calipers

• 85607780 Premium Wheel Weight Hammer

• 85610908 Premium Hub Nut

• 8112106 Small Pressure Cup & Rubber Lip

• 85608312 No Mar Ring

• 8112107 Spring

• 8113390 Scraper

• 85610715 Side Shadow Board
