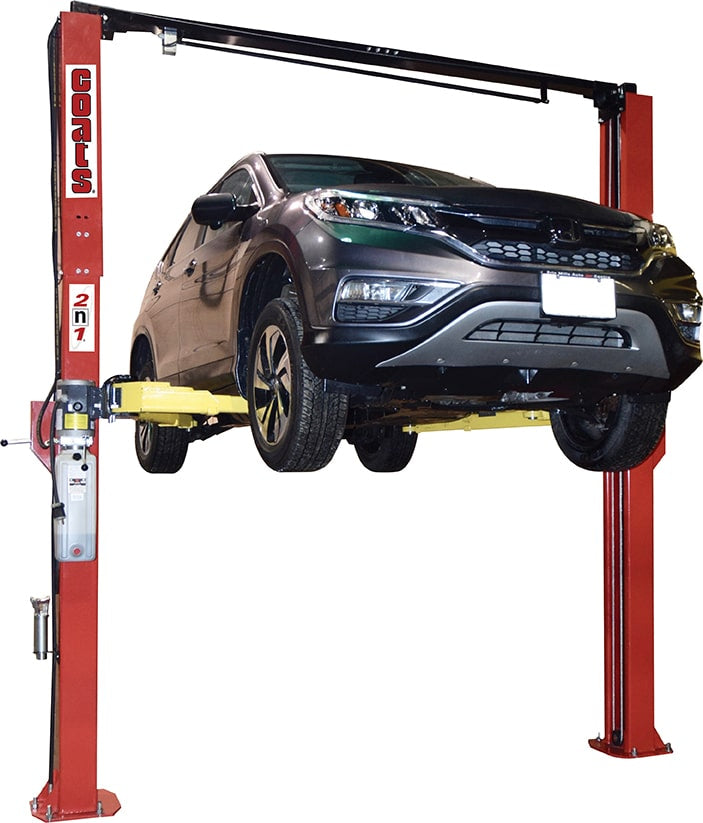

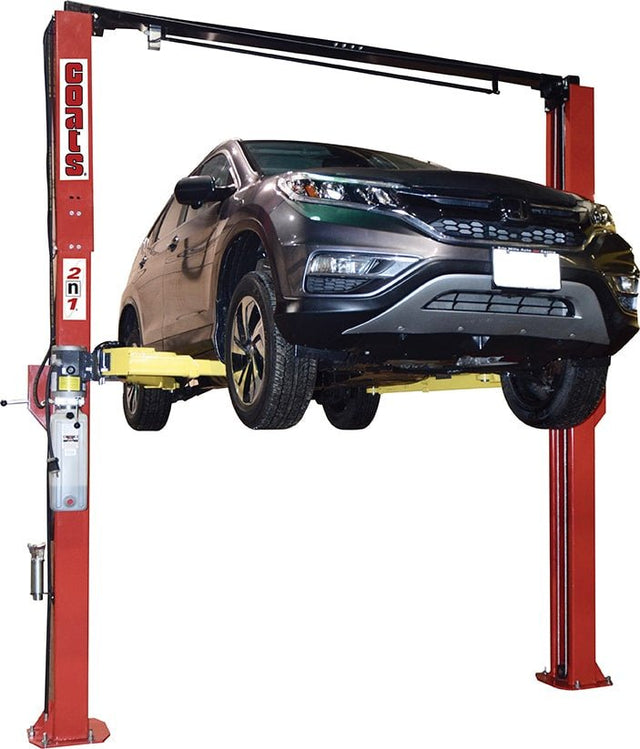

Coats 2N1 Style 10,000 LB Capacity Two Post Lift

 Maxx N2 Series Two Post Lifts are built for shops that lift vehicles all day and expect their equipment to hold up. Available in 10,000 lb and 12,000 lb capacities, these lifts deliver the durability, safety, and consistency of national tire dealers and multi-location operators need to keep bays moving.

Flexible Configurations

 Coats  offers 10,000lb capacity Maxx Two Post Lifts in asymmetric and symmetric configurations with standard and extended height options.

Flexmetric Lifts Give the Best of Both Worlds

 Flexmetric Two Post Lifts are versatile with “2N1” offset adjustable arms that let techs load vehicles either symmetrically or asymmetrically—whichever is appropriate for the vehicle. The asymmetric arms extend to hard-to-reach lift points and operate without obstructing car doors for jobs that require cabin access.

Symmetric Lifts for Extra Stability

 With a wider drive through clearance, symmetric lifts are simple to operate because the four, equally long lifting arms center the vehicle in the bay, making these lifts the most stable solution for shops that regularly lift trucks, SUVs, and other passenger vehicles with longer wheelbases.

Reliable power for your lift

 Every every Maxx Two Post Lift is powered by a USAmade Bucher pump and motor built to deliver reliable hydraulic pressure. It’s efficient and dependable, designed to keep your shop moving for years

Powdered Coated

 These lifts are Powder Coated and double baked to protect against structural corrosion and the harshest working environments

Field Adjustable Height

 Multiple height and width options in our lift line expand the number of vehicles that can be serviced and accommodate space and ceiling height.

 Simple Controls

 Single point release controls can be mounted on either side at time of install to align with shop layout. Comes with document holder and ALI materials.

Stronger Arm Restraints

 Reinforced carriage arm pin holes and plated gear style arm restraints make the lift arms last longer and sag less.

Fast Setup with Included Adapters

 Coats includes lifting adapters with every 10K Two Post Lift, so your techs can properly lift a wide range of vehicles that come into your shop, fast.

Reinforced Columns

 The 10K lifts are 20% heavier due to an inner column reinforcement tube to keep the lift from flexing and prematurely wearing on components.

Bumper Guards

 Carriage door bumper guards near the base of the lift columns protect the lift and prevent damage to the customer’s vehicle.

3 Piece Adjustable Arms

 2N1 adjustable arms allow for asymmetrical and symmetrical lifting and provide longer reach and better access to hard to reach lift points.

Heavy Duty Pulleys

 Self lubricating bronze bushings and large diameter cables reduce maintenance costs (3.5” pulleys and 5/16” cables)

Specifications:
