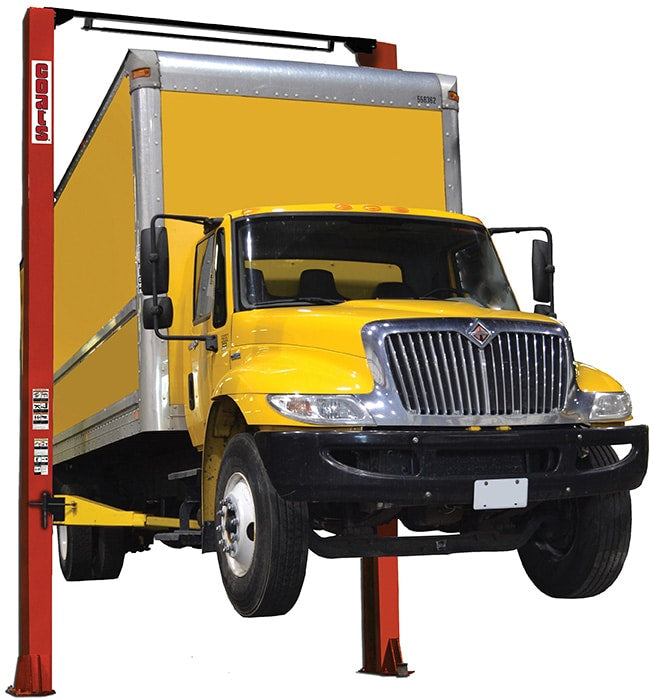

Coats 4T220SSR1 20,000 Lb Capacity Two Post Symetric Lift

 Coats Maxx Heavy Duty 2 Post Lifts are symmetric arm lifts for fleet maintenance and government facilities that need heavy duty lifts for servicing their extra-wide, tall, and heavy vehicles. If you’re routinely working on heavy duty fleets, Maxx HD Two Post Lifts is for you because they are built for longevity and low maintenance. Every Maxx 2 Post lift is certified by the only accredited program in North America that independently verifies whether a lift complies with all industry safety and operational standards (ANSI/ALI ALCTV), such as structural integrity, mechanical safety systems, hydraulic and electrical systems, and load testing. Every Maxx Two Post Lift is powered by a USA-made Bucher pump and motor built to deliver reliable hydraulic pressure. It’s efficient and dependable, designed to keep your shop moving for years.

Single Piece, Corrosion Resistant Columns

The single piece columns have a premium double baked, powder coat finish to withstand harsh working environments and can be special ordered to fit your ceiling height.

Oversized Stable Base

Larger and irregularly shaped base plate is 17” x 31” and is 1” thick to create greater stability and reduce floor stress.

2-Stage Symmetrical Arms

With a 62” reach, our arms are better designed to reach challenging lift points with lowered pad heights to assist.

Air Release Locking System

Single point locking system with filter, regulator, and lubricator is for precise locking and protection from contaminates.

Heavy Duty Arm Restraints

Heavy duty arm restraints are more stable under heavy or uneven loads when supporting larger capacity vehicles.

Energy Efficient Power Unit

U.S. made Bucher 4HP power unit is designed to keep your bay in operation with low noise levels.

Specifications:
