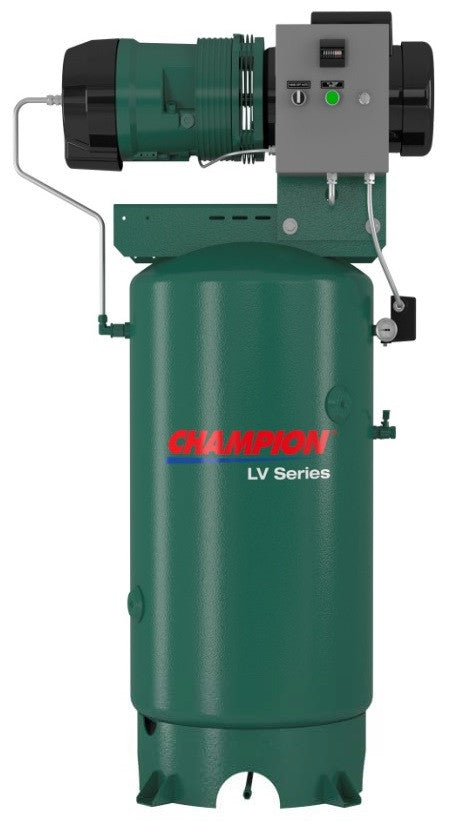

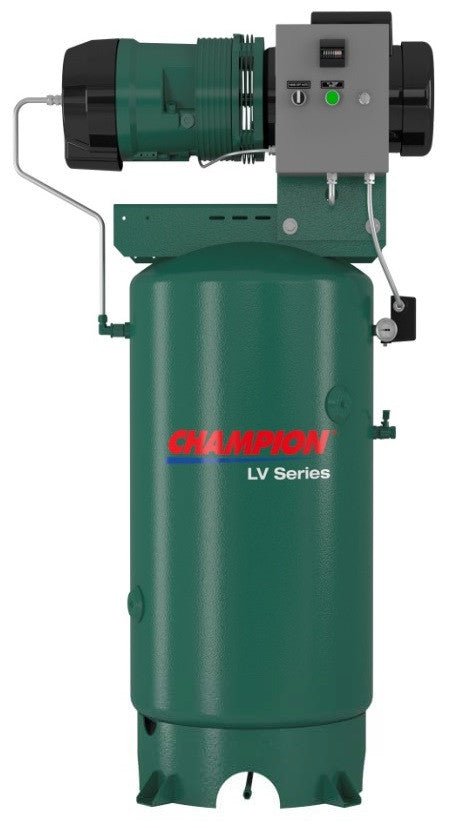

Champion LV04PURVS-8 5 HP 80 Gal Vertical Tank

5 HP, 208/230 Volt Single Phase, 80 Gallon Vertical Tank

Features:

• Advanced Champion rotary vane air-end with cast iron
• TEFC electric motor rotor, vanes, and stator unit
• 3ppm oil carry over
• Direct drive
• Low noise
• Slow speed - 1760RPM
• CS300 vane di-ester lubricant (factory filled)
• High Temperature Safety Shutdown Protection
• NEMA 1 Mounted Full Voltage Starter Panel
• 208-230/460 Volt 3 phase available - CALL FOR PRICE!

Specifications:

• Horsepower | 5
• Model Number | LV04PURVS-8
• CFM Delivery | 19.5 @ 100psi
• Phase | 1
• Voltage | 208/230
• Oil Capacity | 1/2 gal
• Tank | 80 gal
• Shipping Weight | 570 lbs
• Dimensions | 36"l x 26"w x 66"h
• Tank Outlet | 1/2 NPT

 *This Unit Includes Vibration Isolators and Electric Automatic Tank Drain*
