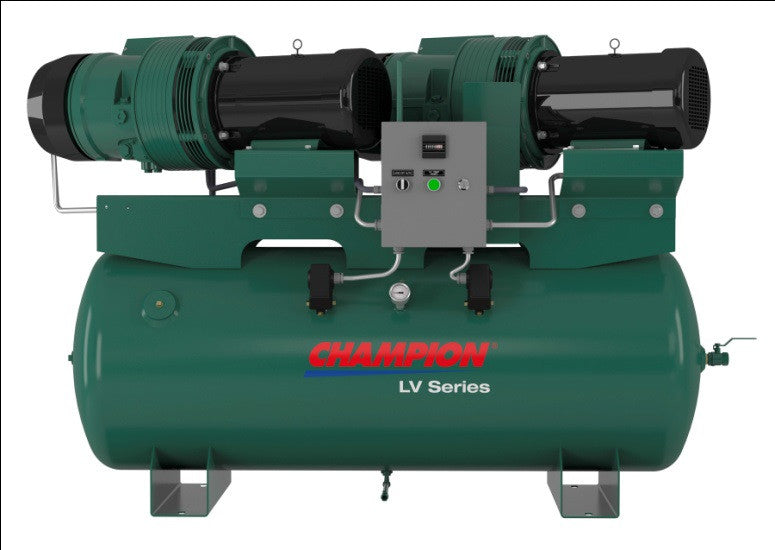

Champion LV04PDRHS-12 5 HP 120 Gal Horizontal Tank, Duplex Air Compresso Single Phase

Features:

• Advanced Champion rotary vane airend with cast iron
• TEFC electric motor (Duplex x2) rotor, vanes, and stator unit (Duplex x2)
• 3ppm oil carry over
• Direct drive
• Low noise
• Slow speed - 1760RPM
• CS300 vane diester lubricant (factory filled)
• High Temperature Safety Shutdown Protection
• NEMA 1 Mounted Full Voltage Starter Panel (Duplex panel includes 2 starters plus alternator)
• 208-230/460 Volt 3 phase available - CALL FOR PRICE!

Specifications:

• Horsepower | 5
• Model Number | LV04PDRHS-12
• CFM Delivery | 39 @ 100psi
• Phase | 1
• Voltage | 208/230
• Oil Capacity | 1 gal
• Tank | 120 gal
• Shipping Weight | 845 lbs
• Dimensions | 72"l x 27"w x 48"h
• Tank Outlet | 1/2 NPT

 *This Unit Includes Vibration Isolators and Electric Automatic Tank Drain*
