CAM Spray 1502WM/SSA CAM Spray Deluxe Wall Mount Electric Cold Water Pressure Washer w/Auto Start-Stop

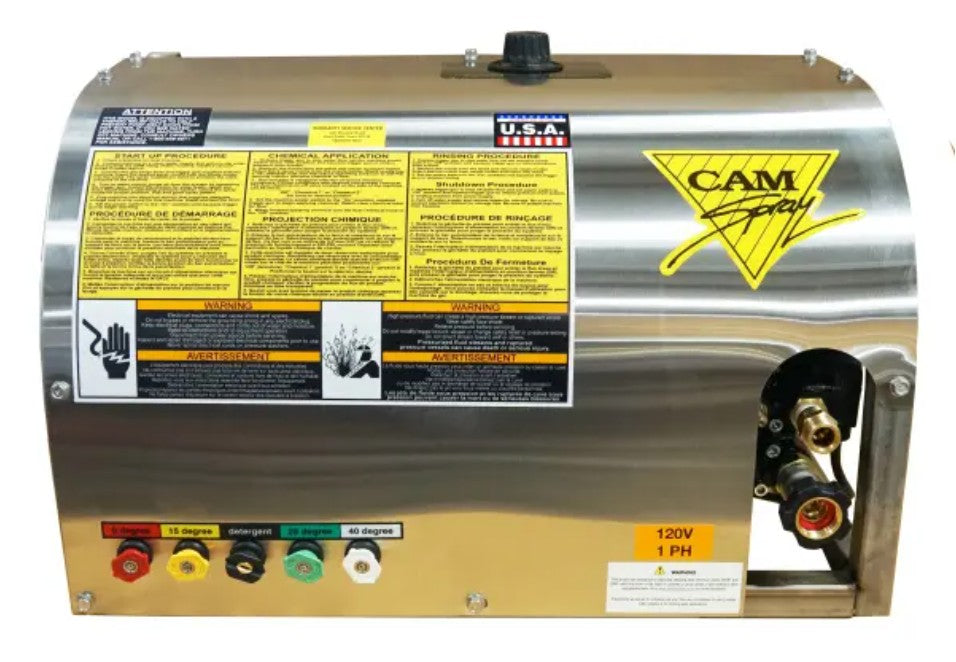

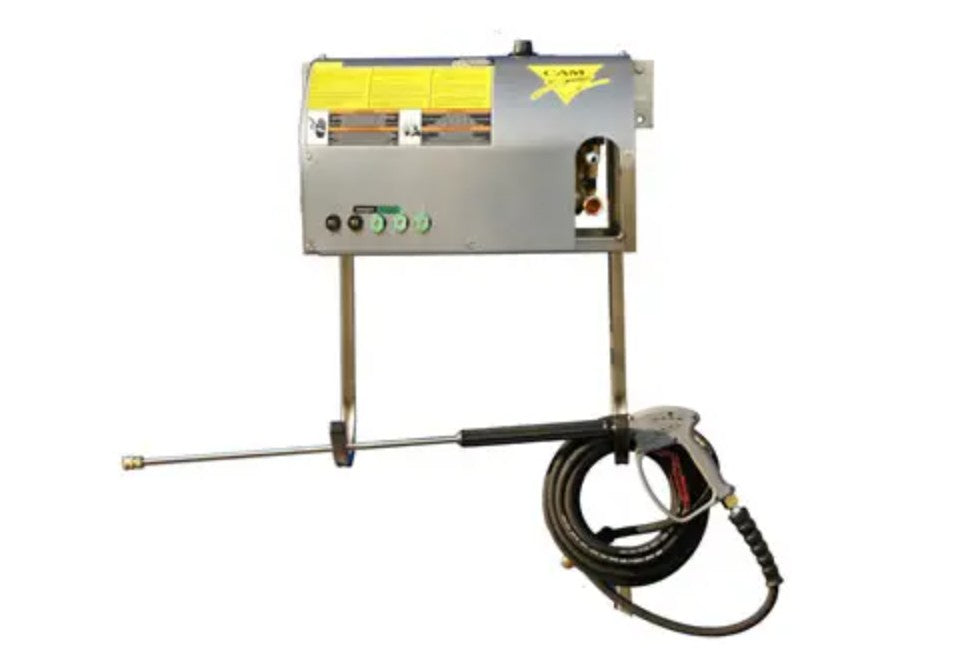

The 1502WM/SSA is a wall mount pressure washer built in a stainless-steel frame with a cover to protect the equipment. This model features a pump with ceramic plungers (3), and stainless-steel valves (6), unloader valve and a 140-degree temperature relief valve. This pump is also equipped with an auto start/stop system. When the power switch on the machine is the "on" position, the auto start/stop is activated. When the trigger gun is open, the motor starts, gun is closed, the motor stops. The 2.0 horsepower industrial motor is thermally protected and operates on 120 Volt/20amp single phase service. Included is a 50’ hose, trigger gun, 0,15, 25, 40 and a low-pressure chemical nozzle. The chemical injector is activated only with the use of the low-pressure nozzle. This provides low-pressure application of soap or finish protection. A mixing valve on the machine cover allows you to choose from 2 different choices of liquid concentrated solution, the knob on the cover will turn it on and control the ratio of soap to water.   A wall plate is included, designed to attach adequate anchors to a reinforced wall. The wall mount frame is built with hooks to hang the pressure washer on the wall bracket. The machine should be hooked to a hydrant with no less than 15’ of ¾” flexible garden hose. This is required to be sure there is ample water supply to the pump, and also will suppress any shock that would cause failure of the pump inlet seals when machine is bypassed.

Specifications:

• Flow Rate in GPM / LPM | 2 / 7.65

• Pressure in PSI / Bar | 1500 / 103.5

• Product Dimensions | 23" x 16" x 31"

• Horsepower | 2

• Pump Thermal Protection | Mechanical

• Voltage / Amperage / Phase | 120 Volt / 20 Amp / 1

• Max Pump Inlet Water Temp | 160° F

• Water Type | Cold

• Hose Dimension | 50' x 3/8"

• Powered By | Electric Motor

• Power Cord | 35' with GFCI

• Mounting Type | Wall Mount

• Ship Weight | 165 lbs

• UPC | 095879309422

ALL CAM SPRAY EQUIPMENT IS BUILT AND TESTED IN THE USA
