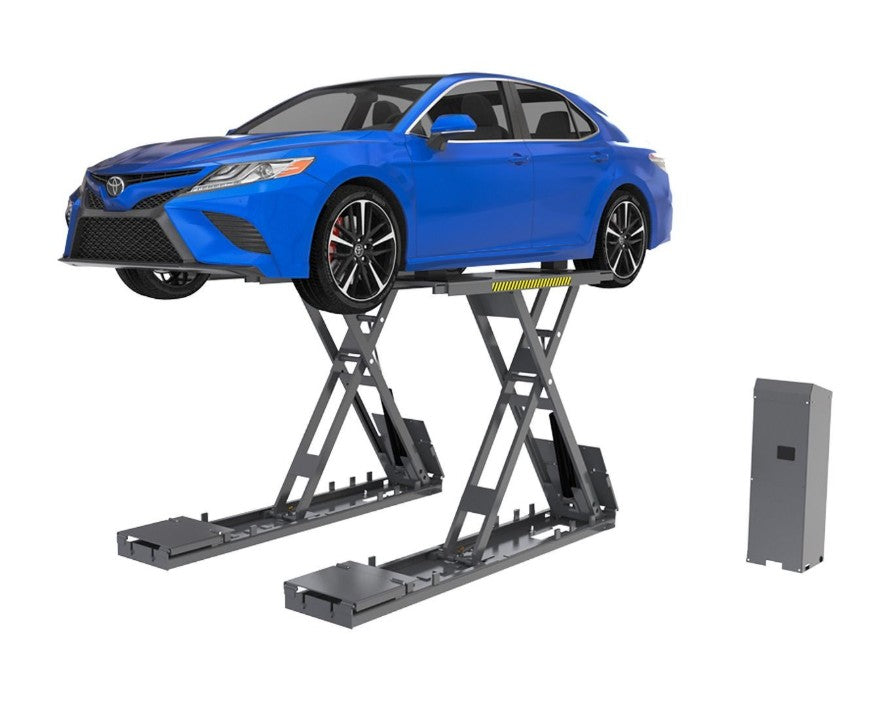

BendPak SP-7XEF 7,000-lb Scissors Lift Flush Mount

This product requires a forklift provided by the customer at the shipping destination to offload.

7,000 Lb. Capacity / Scissors / Frame Engaging / Flush Mount / Independent Pads

This space‐saving, frame engaging lift features no cross members whatsoever, making installation simpler than ever. It easily accommodates most passenger vehicles and light trucks, and it comes complete with pneumatic safety locks, rubber lifting blocks and an open‐center for full under‐car accessibility.

Features:

• 7,000-lb. lifting capacity

• Pneumatic safety locks

• Hardened pivot pins with "Zerk" fittings

• Open-center design

• Ergonomic controls

• Dual-cylinder hydraulic design provides extra power

• Low-profile

Specifications:

• Lifting capacity | 7,000 lbs. (3,175 kg)

• Max height raised | 70.5" (1,791 mm)

• Single platform length | 62.5" (1,590 mm)

• Single platform width | 21.75" (550 mm)

• Extended Platform length | 74" (1,880 mm)

• Overall length | 106" (2,692 mm)

• Distance between Platforms | 38" (968 mm)

• Lowered lift height | Flush with concrete

• Lifting time | 45 seconds

• Motor | 208-240 VAC / 50-60 Hz / 1Ph

• Shipping weight | 2,272 lbs. (1,031 kg)

• Shipping dimensions | 108" x 27" x 35" (2,744 mm x 686 mm x 889 mm)

• Lowest Lock | 24.5" (622.3 mm)

• Top Lock | 69.75" (1,771.65
