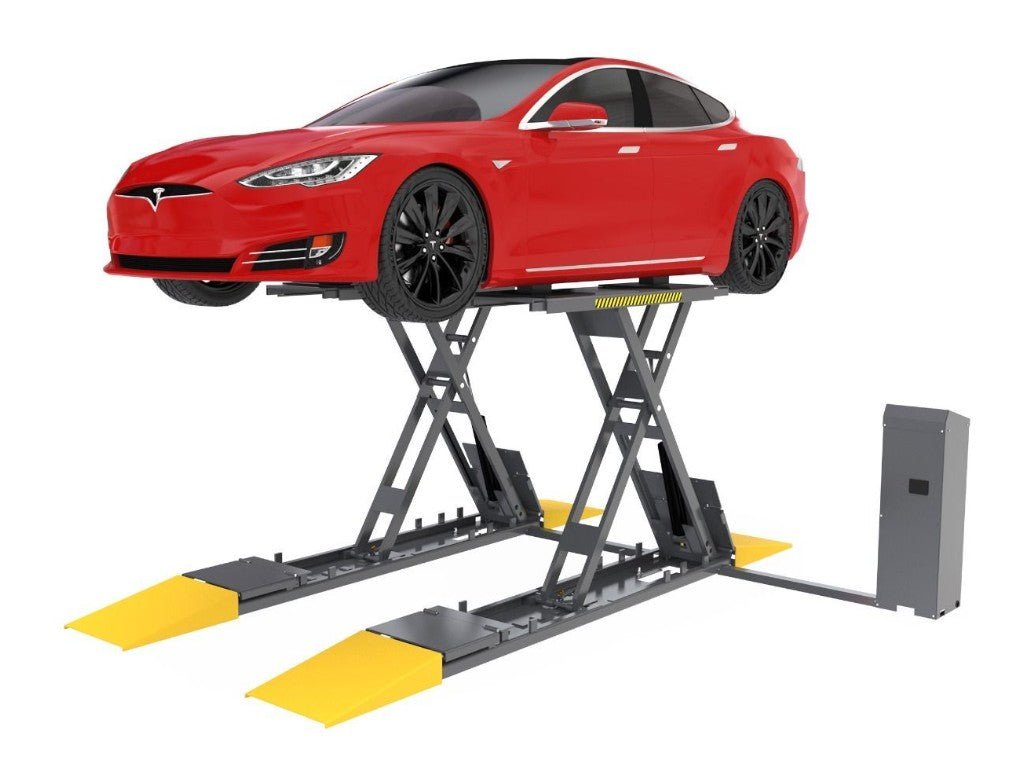

BendPak SP-7XE 7,000-lb Scissors Lift

This product requires a forklift provided by the customer at the shipping destination to offload.

7,000 Lb. Capacity / Scissors / Frame Engaging / Independent Pads

This space‐saving, frame engaging lift features no cross members whatsoever, making installation simpler than ever. It easily accommodates most passenger vehicles and light trucks, and it comes complete with pneumatic safety locks, rubber lifting blocks and an open‐center for full under‐car accessibility.

Features:

• 7,000-lb. lifting capacity

• Pneumatic safety locks

• Hardened pivot pins with "Zerk" fittings

• Open-center design

• Ergonomic controls

• Dual-cylinder hydraulic design provides extra power

• Low-profile

• Surface-mount

Specifications:

• Lifting capacity | 7,000 lbs. (3,175 kg)

• Max height raised | 70.5" (1,791 mm)

• Single platform length | 62.5" (1,590 mm)

• Single platform width | 22" (554 mm)

• Overall length | 165" (4,190 mm)

• Overall width - Min | 81.5" (2,068 mm)

• Overall width - Max | 87.5" (2,218 mm)

• Lowered lift height | 6.5" (165 mm)

• Lifting time | 45 seconds

• Motor | 208-240 VAC / 50-60 Hz / 1Ph

• Shipping weight | 2,502-lbs. (1,134 kg)

• Shipping dimensions | 106" x 27" x 43" (2,692 mm x 685 mm x 1,092 mm)
