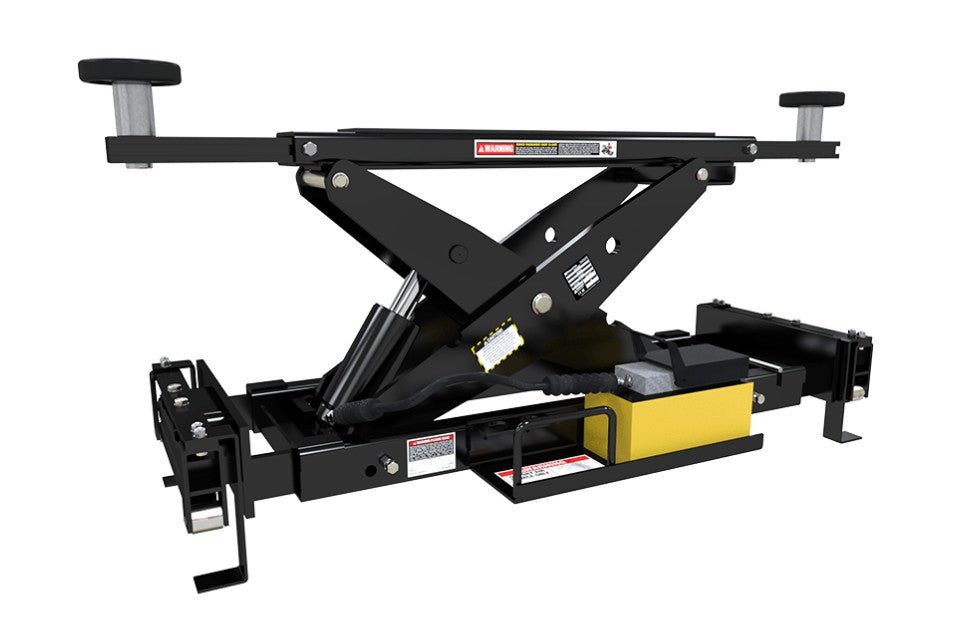

Bendpak RJ9W 9,000-lb Rolling Bridge Jack

This product requires a forklift provided by the customer at the shipping destination to offload.

9,000-lb. Capacity / Rolling Bridge Jack / Easy-Roll Wheels

BendPak’s 9,000-lb. capacity rolling bridge jack is ideal for use on the HDS-18E four-post lift, especially if your vehicles have an unbalanced center of gravity. This jack is ideal for heavier trucks and SUVs.

Features:

• 9,000-lb. lifting capacity

• Easy-Roll Wheels

• Rubber contact pads

• Stackable adapters

• High-pressure hydraulic power unit

• Optional air-line kit - call for pricing

Specifications:

• Lifting Capacity | 9,000 lbs. (4,082 kg)

• Suitable Lift Model(s) | HDS-18E, HDS-27 Series

• Min. Drive-Over Height*
    Pad Only | 5.25" (133 mm)
    Pad + 2.75" Adapter | 8" (203 mm)
    Pad + 5.5" Adapter | 10.75" (273 mm)

• Max. Lifting Height*
    Pad Only | 16.25" (413 mm)
    Pad + 2.75" Adapter | 19" (483 mm)
    Pad + 5.5" Adapter | 21.75" (552 mm)

• Reach
    Support Base Width | 45" (1,143 mm) - 50" (1,270 mm)
    Max. Arm Reach | 56" (1,422 mm)
    Min. Arm Reach | 42" (1,067 mm)
    Time to Full Rise | 55 seconds

• Pump | Air/Hydraulic

• Air Pressure | 125 PSI (10-25 CFM)

• Max. Operating Hydraulic Pressure | 5,020 PSI

• Power Requirement | None

• Shipping Weight | 478 lbs. (217 kg)

• Shipping Dimensions | 47" x 25" x 15" (1,206 mm x 635 mm x 381 mm)

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.
