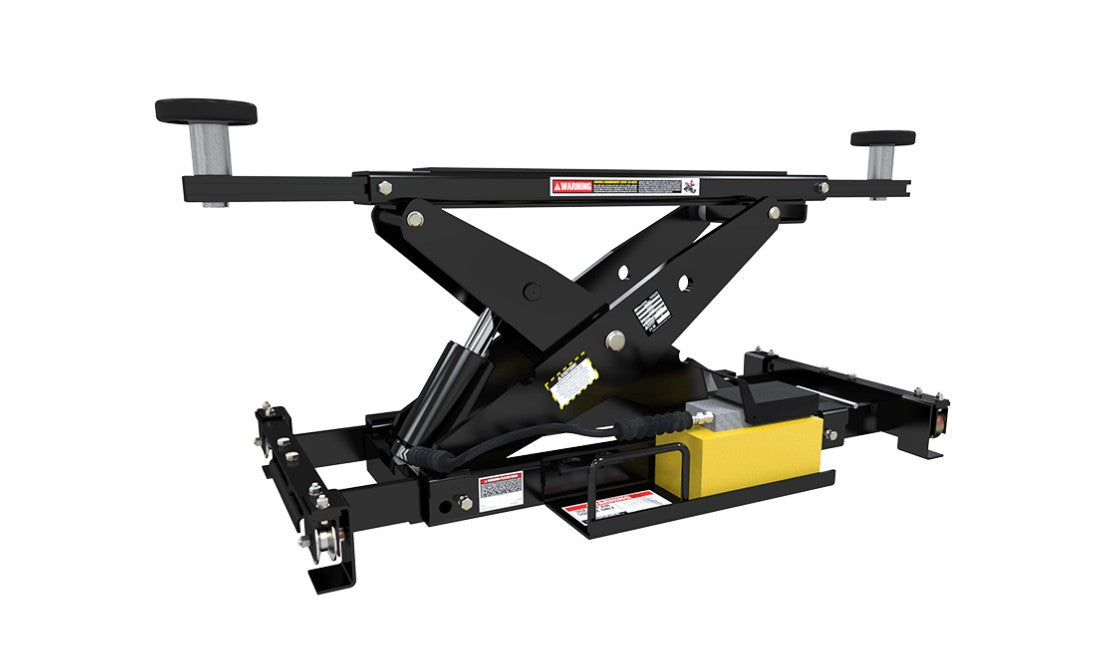

Bendpak RJ6W 6,000-lb Rolling Bridge Jack

This product requires a forklift provided by the customer at the shipping destination to offload.

6,000-lb. Capacity / Rolling Bridge Jack / Easy-Roll Wheels

This 6,000-lb. capacity rolling bridge jack is specifically designed for use with a full-sized scissor lift or four-post lift. The RJ6W provides you with the ability and added versatility to raise the wheels off the runways of your car lift.

Features:

• 6,000-lb. lifting capacity

• Easy-Roll Wheels

• Rubber contact pads

• Stackable adapters

• High-pressure hydraulic power unit

• Optional air-line kit - call for pricing

Specifications:

• Lifting Capacity | 6,000 lbs. (2,721 kg)

• Suitable Lift Model(s) | XR-12000 Series

• Min. Drive-Over Height*
    Pad Only | 1.25" (32 mm)
    Pad + 2.75" Adapter | 4" (102 mm)
    Pad + 5.5" Adapter | 6.75" (171 mm)

• Max. Lifting Height*
    Pad Only | 12" (305 mm)
    Pad + 2.75" Adapter | 14.75" (375 mm)
    Pad + 5.5" Adapter | 17.5" (445 mm)

• Reach
    Support Base Width | 36.25" (921 mm) - 47.25" (1,200 mm)
    Max. Arm Reach | 56" (1,422 mm)
    Min. Arm Reach | 42" (1,067 mm)

• Time to Full Rise | 55 seconds

• Pump | Air/Hydraulic

• Air Pressure | 125 PSI (10-25 CFM)

• Max. Operating Hydraulic Pressure | 3,370 PSI

• Power Requirement | None

• Shipping Weight | 436 lbs. (193 kg)

• Shipping Dimensions | 42" x 24" x 14" (1,066 mm x 609 mm x 355 mm)

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.
