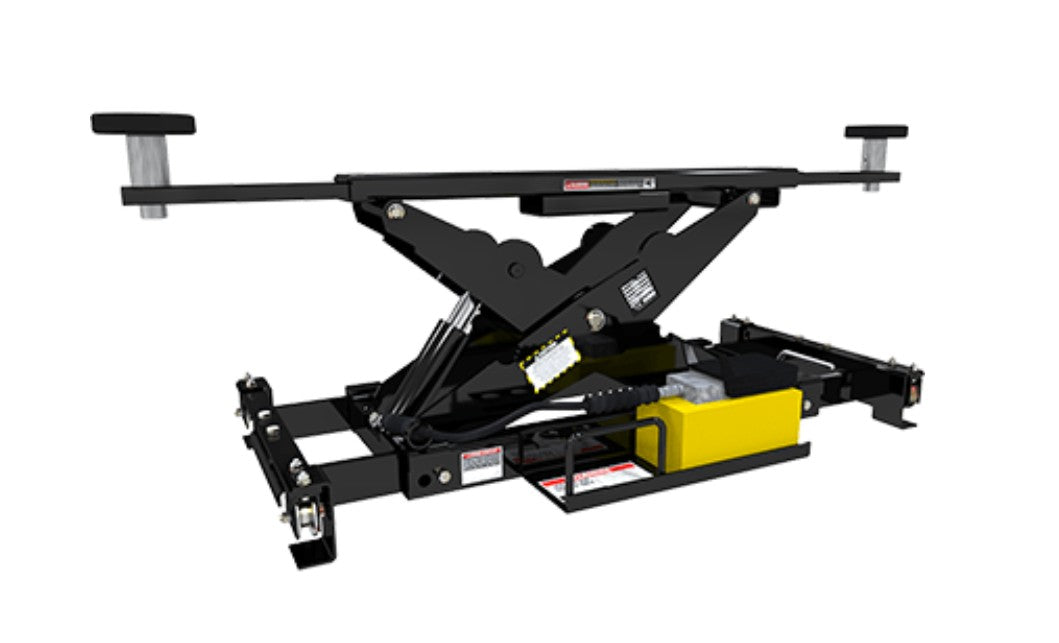

BendPak RJ45LP 4,500-lb Rolling Bridge Jack

This product requires a forklift provided by the customer at the shipping destination to offload.

4,500-lb. Capacity / Rolling Bridge Jack / Easy-Roll Wheels / Low-Profile

BendPak RJ45LP rolling bridge jack is designed to hold up to 4,500 lbs. and features a low-profile design with easy-to-roll wheels. Use this 4-post bridge jack with your BendPak HD-9 series four-post car lift for increased versatility and productivity.

Features:

• 4,500-lb. lifting capacity

• Easy-Roll Wheels

• Low-profile minimum drive-over height, wider reach lifting points

• Rubber contact pads

• Stackable adapters

• High-pressure hydraulic power unit

• Optional air-line kit - call for pricing

Specifications:

• Lifting Capacity | 4,500 lbs. (2,041 kg)

• Suitable Lift Model(s) | HD-7 Series, HD-9 Series, GP-9 series

• Min. Drive-Over Height*
    Pad Only | 4.25" (108 mm)
    Pad + 2.75" Adapter | 7" (178 mm)
    Pad + 5.5" Adapter | 9.75" (248 mm)

• Max. Lifting Height*
    Pad Only | 15.25" (387 mm)
    Pad + 2.75" Adapter | 18" (457 mm)
    Pad + 5.5" Adapter | 21" (533 mm)

• Reach
    Support Base Width | 35.5" (902 mm) - 46.5" (1,181 mm)
    Max. Arm Reach | 61" (1,549 mm)
    Min. Arm Reach | 42" (1,067 mm)

• Time to Full Rise | 55 seconds

• Pump | Air/Hydraulic

• Air Pressure | 125 PSI (10-25 CFM)

• Max. Operating Hydraulic Pressure | 2,490 PSI

• Power Requirement | None

• Shipping Weight | 306 lbs. (139 kg)

• Shipping Dimensions | 41.25" x 25" x 13" (1,048 mm x 635 mm x 330 mm)

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.
