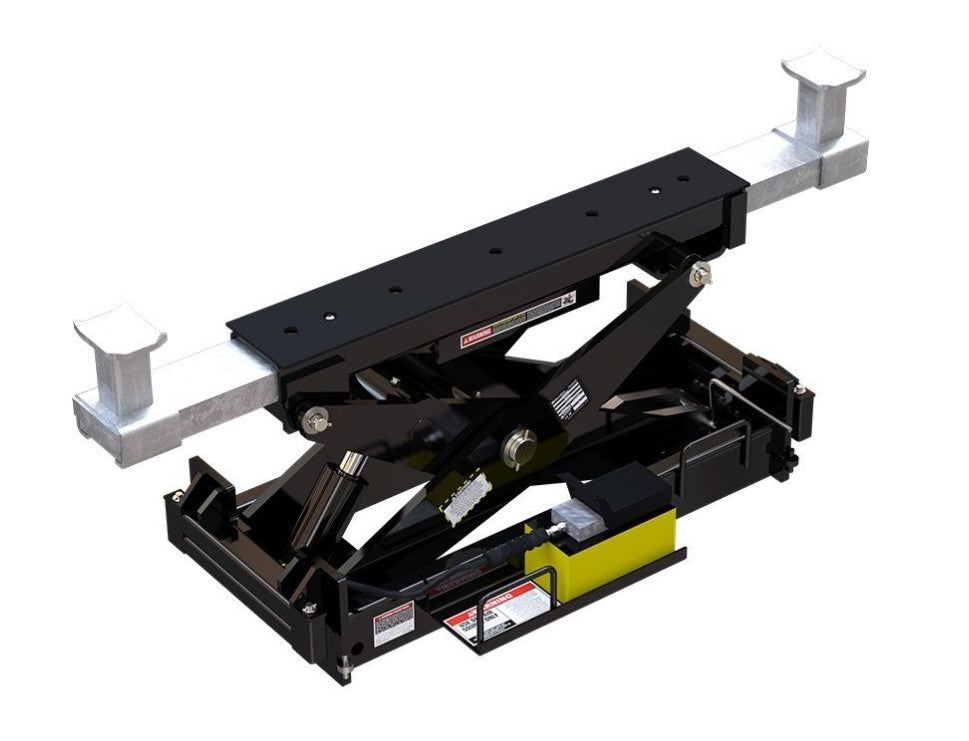

BendPak RBJ25000 25,000-lb Rolling Bridge Jack

This product requires a forklift provided by the customer at the shipping destination to offload.

25,000-lb. Capacity / Rolling Bridge Jack

This is our most powerful rolling bridge jack ever, with 25,000 lbs. of muscle meant to service some of the biggest commercial fleets on earth. Use this jack on the 40,000-lb. capacity HDS40 truck lift to perform wheel service on almost any heavy-duty vehicle on wheels.

Features:

• 25,000-lb. lifting capacity

• Steal contact pads

• High-pressure hydraulic power unit

• Optional air-line kit- call for pricing

Specifications:

• Lifting Capacity | 25,000 lbs. (11,340 kg)

• Suitable Lift Model | HDS-40 Series

• Min. Drive-Over Height*
    Short Arm Pad | 9" (229 mm)
    Short Top Pad | 9.75" (248 mm)
    Tall Arm Pad | 10.5" (267 mm)
    Tall Top Pad | 11.25" (286 mm)

• Max. Lifting Height*
    Short Arm Pad | 19" (483 mm)
    Short Top Pad | 19.75" (502 mm)
    Tall Arm Pad | 20.5" (521 mm)
    Tall Top Pad | 21.25" (540 mm)

• Reach
    Support Base Width | 45" (1,143 mm)
    Max. Arm Pad Reach | 63.75" (1,619 mm)
    Min. Arm Pad Reach | 48.5" (1,232 mm)
    Max. Top Pad Reach | 39.5" (1,003 mm)
    Min. Top Pad Reach | 8" (203 mm)

• Time to Full Rise | 55 seconds

• Pump | Air/Hydraulic

• Air Pressure | 125 PSI (10-25 CFM)

• Max. Operating Hydraulic Pressure | 7,200 PSI

• Power Requirement | None

• Shipping Weight | 786 lbs. (356 kg)

• Shipping Dimensions | 47" x 29" x 17" (1,206 mm x 736 mm x 431 mm)

*Dimensions listed are taken from the upper surface of the suitable four-post lift runway.
