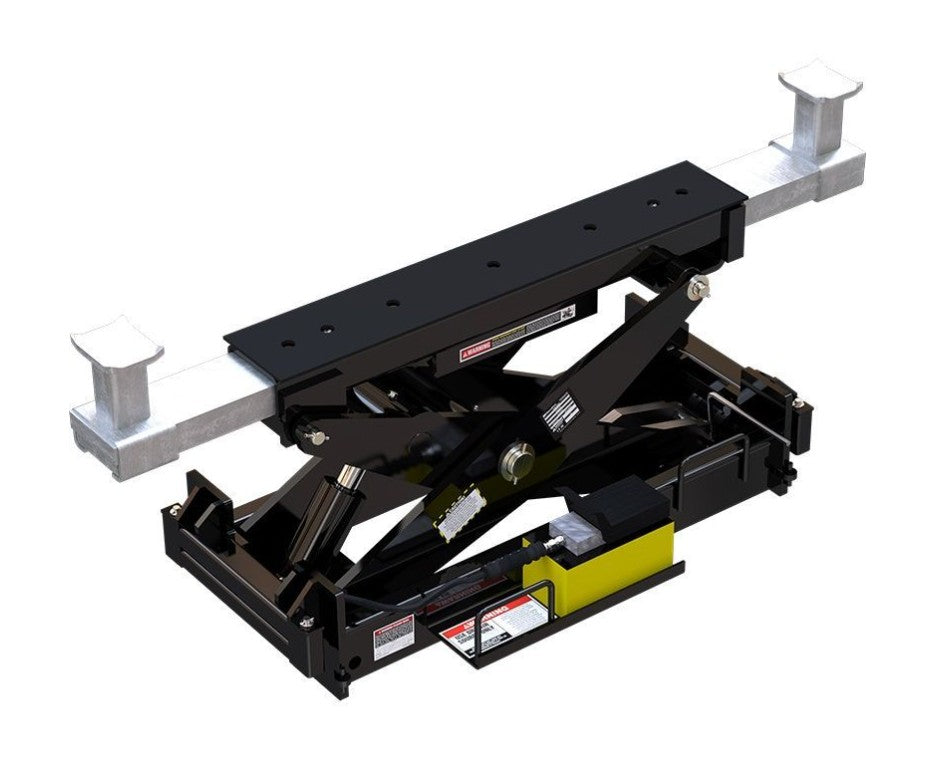

Bendpak RBJ18000 18,000-lb Rolling Bridge Jack

This product requires a forklift provided by the customer at the shipping destination to offload.

18,000-lb. Capacity / Rolling Bridge Jack

The powerful 18,000-lb. capacity RBJ18000 rolling bridge jack is made for use with your HD-35 4-Post series lift. Sometimes a vehicle’s center of gravity isn’t in the exact middle of the vehicle. Even a 30,000-lb. vehicle might require a jack that is rated for more than half the vehicle’s weight.

Features:

• 18,000-lb. lifting capacity

• Steal contact pads

• High-pressure hydraulic power unit

• Optional air-line kit- call for pricing

Specifications:

• Lifting Capacity | 18,000 lbs. (8,165 kg)

• Suitable Lift Model | HDS-40 Series

• Min. Drive-Over Height*
    Short Arm Pad | 9" (229 mm)
    Short Top Pad | 9.75" (248 mm)
    Tall Arm Pad | 10.5" (267 mm)
    Tall Top Pad | 11.25" (286 mm)

• Max. Lifting Height*
    Short Arm Pad | 19" (483 mm)
    Short Top Pad | 19.75" (502 mm)
    Tall Arm Pad | 20.5" (521 mm)
    Tall Top Pad | 21.25" (540 mm)

• Reach
    Support Base Width | 45" (1,143 mm)
    Max. Arm Pad Reach | 63.75" (1,619 mm)
    Min. Arm Pad Reach | 48.5" (1,232 mm)
    Max. Top Pad Reach | 39.5" (1,003 mm)
    Min. Top Pad Reach | 8" (203 mm)

• Time to Full Rise | 55 seconds

• Pump | Air/Hydraulic

• Air Pressure | 125 PSI (10-25 CFM)

• Max. Operating Hydraulic Pressure | 7,200 PSI

• Power Requirement | None

• Shipping Weight | 792 lbs. (359 kg)

• Shipping Dimensions | 47" x 29" x 17" (1,206 mm x 736 mm x 431 mm)

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.
