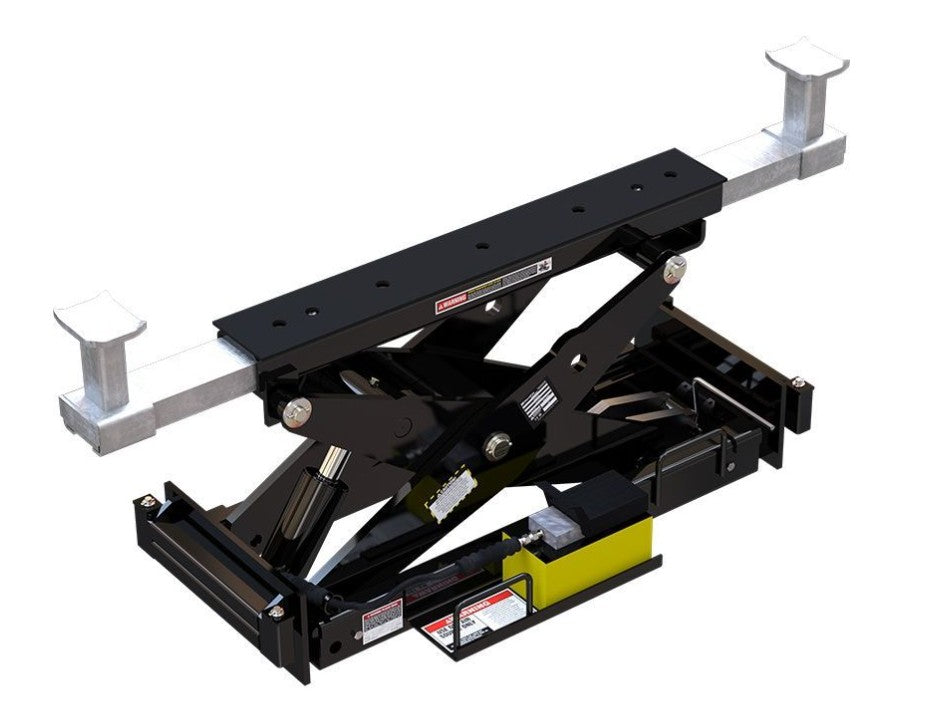

Bendpak RBJ15000 15,000-lb Rolling Bridge Jack

This product requires a forklift provided by the customer at the shipping destination to offload.

15,000-lb. Capacity / Rolling Bridge Jack

Our 15,000-lb. capacity bridge jack is made just for the HDS-27 four-post lift. This particular car lift is truly made for massive trucks and commercial equipment. Check out the RBJ15000 jack if you need to perform full wheel service on heavy-duty vehicles.

Features:

• 15,000-lb. lifting capacity

• Steel lifting pads standard

• High-pressure hydraulic power unit

• Optional air-line kit- call for pricing

Specifications:

• Lifting Capacity | 15,000 lbs. (6,804 kg)

• Suitable Lift Model(s) | HDS-27 Series, HDS-40 Series

• Min. Drive-Over Height*
    Short Arm Pad | 9" (229 mm)
    Short Top Pad | 10" (254 mm)
    Tall Arm Pad | 11" (279 mm)
    Tall Top Pad | 12" (305 mm)

• Max. Lifting Height*
    Short Arm Pad | 19" (483 mm)
    Short Top Pad | 20" (508 mm)
    Tall Arm Pad | 21" (533 mm)
    Tall Top Pad | 22" (559 mm)

• Reach
    Support Base Width | 45.75" (1,162 mm) - 59" (1,499 mm)
    Max. Arm Pad Reach | 63.75" (1,619 mm)
    Min. Arm Pad Reach | 48.5" (1,232 mm)
    Max. Top Pad Reach | 39.5" (1,003 mm)
    Min. Top Pad Reach | 7.75" (197 mm)

• Time to Full Rise | 55 seconds

• Pump | Air/Hydraulic

• Air Pressure | 125 PSI (10-25 CFM)

• Max. Operating Hydraulic Pressure | 6,000 PSI

• Power Requirement | None

• Shipping Weight | 708 lbs. (321 kg)

• Shipping Dimensions | 48" x 29" x 18" (1,238 mm x 736 mm x 457 mm)

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.
