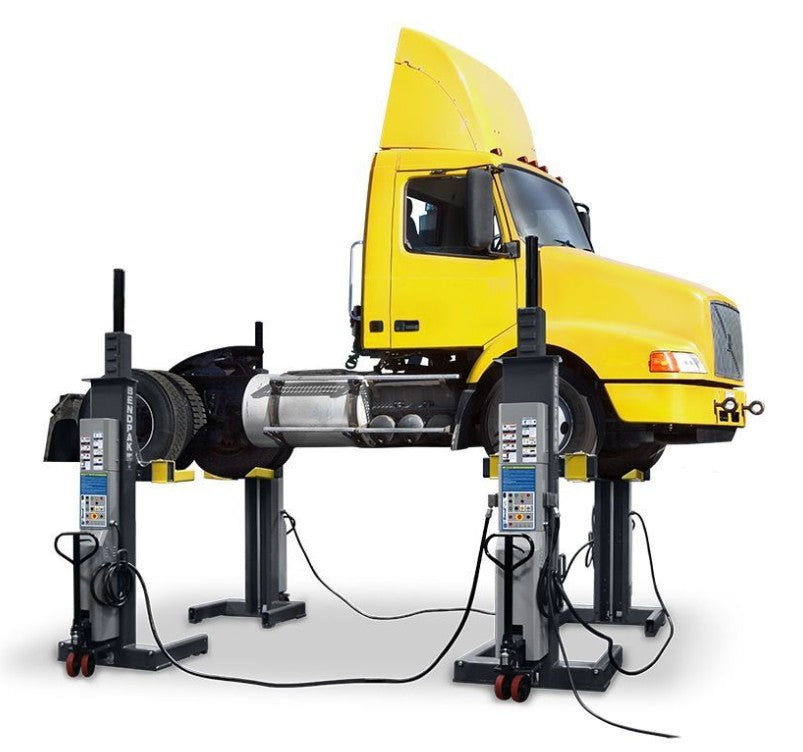

BendPak PCL-18B-4 High Voltage Lift System - Set of 4

This product requires a forklift provided by the customer at the shipping destination to offload.

72,000 Lb. Cap. Mobile Lift System / 460/380V, 50-60HZ, 3-Ph. / SET OF 4

With a full set of mobile column lifts, you'll lift vehicles up to 72,000 lbs. This weight class encompasses most heavy-duty and commercial semi-trucks. This handy tool allows you to safely remove tires and perform full wheel service on your vehicle.

Features:

• 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity

• Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011

• 208-240V, 3-phase main power system - optional voltages available upon request
  SINGLE, PAIR or TEAM operation

• For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions

• Simple operation, long service life and minimum maintenance

• Intuitive controls allow the lift to be fully programmed and controlled from any column

• Control systems feature 24-volt safety circuitry

• The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls, which can be very expensive to service or replace

• Smart electronics feature self-diagnostics and self-calibration functions

• Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting

• Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights

• Two-speed lowering option – turtle or rabbit speed settings

• Each column is equipped with a warning light and audible alarm for critical warning alerts

• Emergency shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator

• Separate key lock enclosure on each column

• Electronics are multi-fuse protected

• An enclosed electric-hydraulic power system that ensures quieter operation is better suited for sound-sensitive areas

• Pallet-jack style steering wheels enable the columns to be lowered firmly on the floor vs. constantly loaded spring-type steering wheels that can cause columns to roll when unladen by the weight of a vehicle

• Low-mounted power units and cylinders means a lower center of gravity, making the columns easier to move and less likely to topple vs. screw-drive systems with heavy overhead motors and drive systems

• Extended forks accommodate wide tires and deep wheel configurations

• Multi-width wheel forks with locking pins accommodate the widest range of wheels, eliminating the need for specialty wheel adapters

• Tandem 8" diameter polyurethane covered steel wheels with sealed roller bearings easily roll over dirt and debris

• Heavy-duty steel carriage rollers feature turned, ground and polished axle pins

• Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks

• Durable forklift pockets provide simplistic handling when moving the lift columns from one facility to another

• Inverted hydraulic cylinders feature an integrated safety valve to prevent accidental uncontrolled lowering in the event of oil pressure loss

• Multiple, automatic, independent safety locks spaced every four inches ensure safe operation

• Space-saving design, reduced column weight and a tight turning radius provides improved mobility

• Use the lift to place vehicles on tall jack stands then use the columns to raise another vehicle in an adjoining bay

• Durable powder-coat finish

Specifications:

• Lifting Capacity | 18,000 lbs. (8,165 kg)

• Overall Height (RAISED) | 101" (2,565 mm)

• Overall Height (LOWERED) | 146.5" (3,721 mm)

• Max. Lifting Height | 71.5" (1,889 mm)

• Overall Depth | 48.75" (1,238 mm)

• Overall Width | 45" (1,143 mm)

• Chassis Length | 32.25" (819 mm)

• Min. Lifting Fork Width | 9.5" (241 mm)

• Max. Lifting Fork Width | 35" (889 mm)

• Lifting Fork Length | 11.5" (292 mm)

• Turning Circle | 40" (1,016 mm)

• Column Weight | 1,450 lbs. (657 kg)

• Lifting Speed | 85 sec

• Shipping Weight per Column | 1,498-lbs. (679 kg)

• Shipping Dimensions per Column | 106" x 55" x 41" (2,696 mm x 1,397 mm x 1,041 mm)
