BendPak PCL-18B-2 High Voltage Lift System - Set of 2

This product requires a forklift provided by the customer at the shipping destination to offload.

36,000 Lb. Cap. Mobile Lift System / 460/380V, 50-60HZ, 3-Ph. / SET OF 2

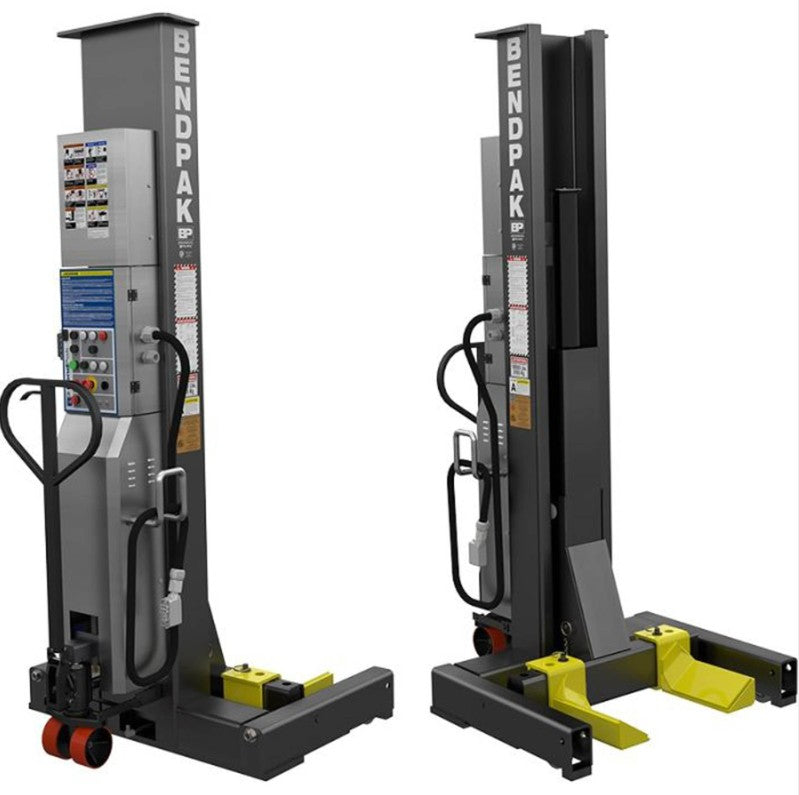

With a pair (2) of mobile column lifts, you can add to your existing fleet and expand your lifting capabilities to include larger semi-trucks and heavy-duty vehicles. This 2-set is a great way to gradually upgrade into the 6 or 8-lift range.

Features:

• 18,000-lb. individual column capacity / 36,000-lb. maximum system capacity

• Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2017

• Just three 30’ cables are used leaving the front or back of the lift clear of cable obstructions

• Intuitive controls allow the lift to be fully programmed and controlled from any column

• Smart electronics feature self-diagnostics and self calibration functions

• Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns through all cycles for precise, level lifting

• Height settings can be programmed for low ceiling shops

Specifications:

• Lifting Capacity | 36,000 lbs

• Overall Height (RAISED) | 101" (2,565 mm)

• Overall Height (LOWERED) | 146.5" (3,721 mm)

• Max. Lifting Height | 71.5" (1,889 mm)

• Overall Depth | 48.75" (1,238 mm)

• Overall Width | 45" (1,143 mm)

• Chassis Length | 32.25" (819 mm)

• Min. Lifting Fork Width | 9.5" (241 mm)

• Max. Lifting Fork Width | 35" (889 mm)

• Lifting Fork Length | 11.5" (292 mm)

• Turning Circle | 40" (1,016 mm)

• Column Weight | 1,450 lbs. (657 kg)

• Lifting Speed | 85 sec

• Shipping Weight | 1,450 lbs. (657 kg)
