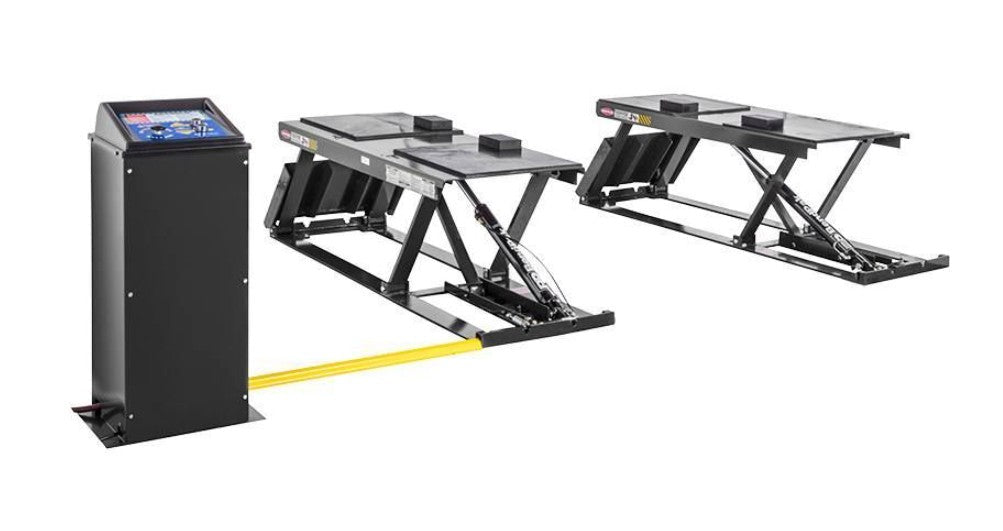

BendPak P-9000LTF Low Rise 9,000-lb Scissor Lift

This product requires a forklift provided by the customer at the shipping destination to offload.

9,000 Lb. Capacity / Low-Rise Lift / Open-Center Pit-Style / Flush Mount / 208-230V, 60 Hz 1-Phase

The P-9000LTF is one of the industry's highest-capacity low-rise scissor lifts. It offers a flush-mounted and open-center design, so you can lift heavy-duty equipment without taking up an inch of vertical space in your shop when the lift is not in use.

Features:

• 9,000-lb. lifting capacity

• Reinforced parallel lifting arms to better support inboard loading

• Reinforced upper lift platform to better support inboard loading

• Dual-pump power unit with built in proportioning valve

• Easily convert fast-lube pits into wheel service work bays

• Mounts outside the pit rail without interfering with center work area

• Model P-9000LTF flush-mount model provides recessed drive-over option

• Heavy duty 1.5 HP electric-hydraulic power unit

• Electronic push-button controls allow smooth, single-hand operation

• Automatic multi-position safety locks with air release deliver safe, remote operation

• Powder-coat finish

• Durable rubber-topped pad surface and rubber lift blocks provide quick set-up

• Enhanced adjustable (optional) lifting arms

Specifications:

• Lifting capacity | 9,000 lbs. (4,082 kg)

• Lifting Height | 24” (610 mm)"

• Lifting Height + Block | 27" (686 mm)

• Overall Lift Platform Length | 58.5” (1,484 mm)"

• Overall Lift Platform Width | 24" (610 mm)

• Overall Length | 74.4" (1,890 mm)

• Lowered Height | 4" (102 mm)

• Speed of rise | 55 seconds

• Standard motor* | 1.5 HP / 208-230 VAC / 60 Hz / 1 Ph

• Shipping weight | 1,134-lbs. (514 kg)

• Shipping dimensions | 77" x 40" x 24" (1,943 mm x 1,016 mm x 609 mm)

*BendPak makes no promises, guarantees or assurances that our products meet any state, county, federal or international mandated permit, license, code, standard, certification, or any other mandate other than what is listed or shown on BendPak website(s), or any BendPak online or published catalog.
