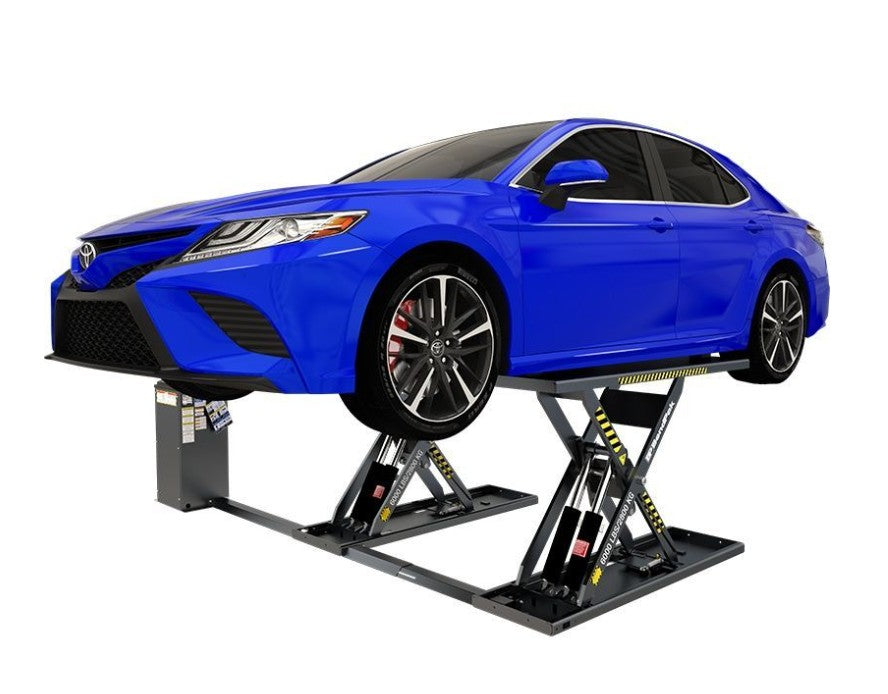

BendPak MDS-6LPF 6,000-lb Mid-Rise Scissor Lift Flush Mount

This product requires a forklift provided by the customer at the shipping destination to offload.

6,000 Lb. Cap. / Mid-Rise Scissors Lift / Open Center / FLUSH-MOUNT / 208-230V, 60 Hz 1-Phase

If you’re looking to flush-mount your lift in the floor for a smooth sub-surface installation, be sure to choose the MDS-6LPF. Sharing all the same features of the MDS-6LP, our space-saving flush-mount design is the ideal way to keep garage lift equipment parallel with your flooring.

Features:

• Each lift platform features four solid steel-scissor frame support bars, making it one of the strongest mid-rise lifts in its class

• Dual master hydraulic cylinder combines with dual equalizing cylinders to provide a safe and level 6,000 pound lifting capacity

• Solid-steel safety lock bars engage automatically during ascent

• Convenient stainless-steel pneumatic cylinders simultaneously release safety locks during descent with a simple push of a button. (NOTE: Requires min. 50 psi, 10-CFM air source at time of installation.)

• A push-button safety lock release system is operated away from the lift and allows operators to safely deactivate the locks without the need to push or pull cumbersome release bars or lock release handles

• Hinge point features Zerk grease fitting to allow lubrication at critical wear areas

• Comes standard with four durable cushioned-rubber contact blocks, permitting fast vehicle setup

• Three locking positions allow technicians to work at different working heights to increase productivity and minimize fatigue

• Powder coat finish provides a long lasting durable finish

• Flush-mount design for in-ground installation in lube shops, full-service bays and home garage environments looking for a zero-footprint lift

Specifications:

• Fully Lowered | 5" (127 mm)

• 1st Lock | 21" (533 mm)

• 2nd Lock | 32" (813 mm)

• 3rd Lock | 38.75" (984 mm)

• Full Rise | 44" (1,118 mm)

• Lifting capacity | 6,000 lbs. (2,722 kg)

• Lifting height | 44" (1,118 mm) / ( minus 4-3/8" for sub-surface flooring)

• Lifting height + blocks | 46" (1,168 mm) / ( minus 4-3/8" for sub-surface flooring)

• Lift platform dimensions | 19" x 67" (484 mm x 1,701 mm)

• Width between platforms | 40" to 46" (1,018 mm to 1,168 mm)

• Overall width | Adjustable

• Overall length | 67" (1,701 mm)

• Lowered height | Flush with ground

• Lifting time | 35 seconds

• Motor | 208-230 VAC / 60 Hz / 1 Ph

• Shipping weight | 1,422-lbs. (645 kg)

• Shipping dimensions | 70" x 61" x 25" (1,778 mm x 1,549 mm x 635 mm)
