BendPak MDS-6EXT 6,000-lb Mid-Rise Scissor Lift Extended Platform

This product requires a forklift provided by the customer at the shipping destination to offload.

6,000 Lb. Capacity / Mid-Rise Scissors Lift / Open Center / EXTENDED / 208-230V, 60 Hz 1-Phase

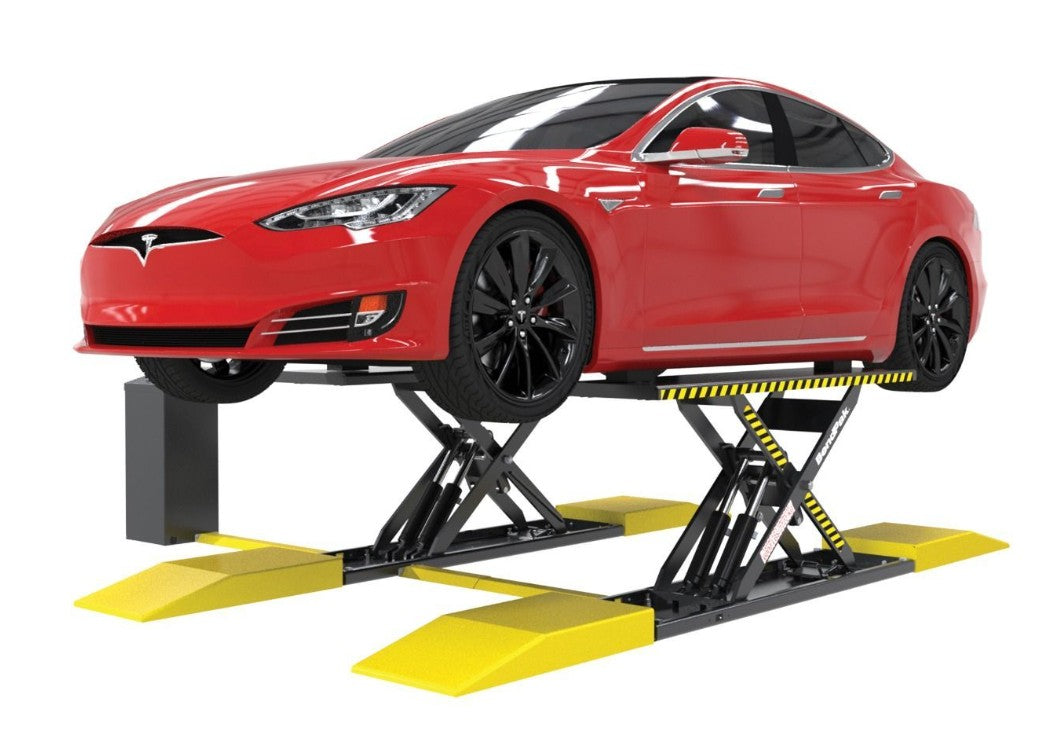

You haven’t experienced state-of-the-art lifting convenience until you’ve used a BendPak mid-rise scissor lift. This family of 6,000-lb. capacity mid-rise lifts features safety lock bars with multiple lock positions. Image for reference only and does not represent actual product.

Features:

• Each lift platform features four solid steel-scissor frame support bars, making it one of the strongest mid-rise lifts in its class

• Dual master hydraulic cylinder combines with dual equalizing cylinders to provide a safe and level 6,000 pound lifting capacity

• Solid‐steel safety lock bars engage automatically during ascent

• Convenient stainless‐steel pneumatic cylinders simultaneously release safety locks during descent with a simple push of a button. (NOTE: Requires min. 50 psi, 10 CFM air source at time of installation.)

• A push‐button safety lock release system is operated away from the lift and allows operators to safely deactivate the locks without the need to push or pull cumbersome release bars or lock release handles

• Hinge point features Zerk grease fitting to allow lubrication at critical wear areas

• Comes standard with four durable cushioned‐rubber contact blocks, permitting fast vehicle setup

• Three locking positions allow technicians to work at different working heights to increase productivity and minimize fatigue

• Powder coat finish provides a long lasting durable finish

Specifications:

• Lifting capacity | 6,000 lbs. (2,722 kg)

• Lifting height | 36.75" (934 mm)

• Lifting height + Blocks | 38.25" (972 mm)

• Lift platform dimensions | 19" x 78.7" (484 mm x 2,000 mm)

• Width between platforms | 40" - 46" (1,018 mm - 1,168 mm)

• Overall width | Adjustable

• Overall length | 104.3" (2,650 mm)

• Lowered height | 5.25" (133 mm)

• Lifting time | 35 seconds

• Motor | 208-230 VAC / 60 Hz / 1 Ph

• Shipping weight | 1,748-lbs. (793 kg)

• Shipping dimensions | 80" x 67" x 20" (2,032 mm x 1,701 mm x 508 mm)
