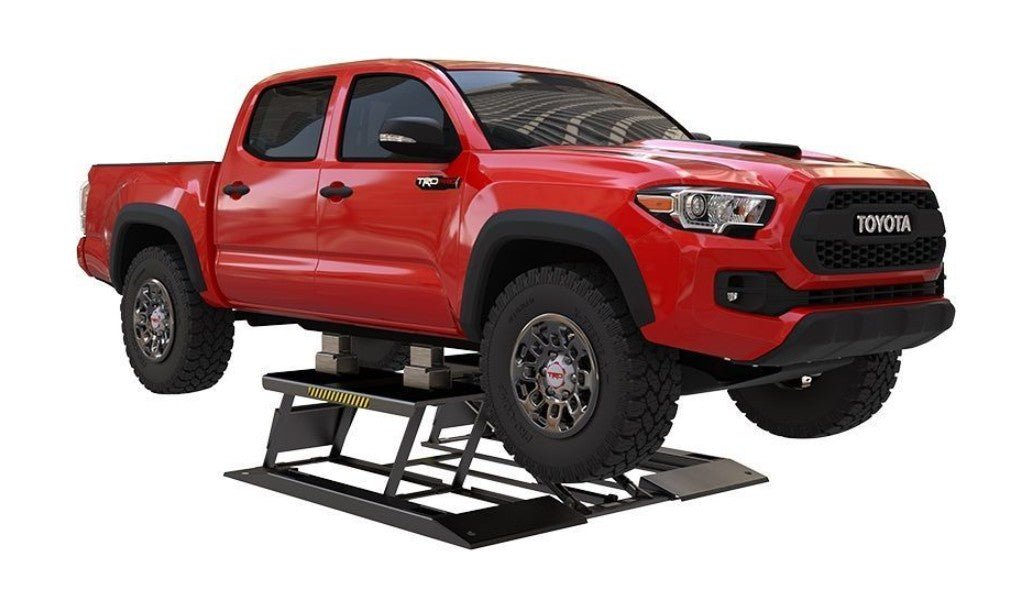

BendPak LR-10000 Low Rise 10,000-lb Lift

This product requires a forklift provided by the customer at the shipping destination to offload.

10,000 Lb. Capacity / Low-Rise Lift / Std. Voltage 208-230V, 50/60hz, 1-Phase

BendPak’s 10,000-lb. capacity LR-10000 low-rise lift is your solution for quick service and increased productivity when servicing today’s passenger cars and light trucks. From tire and brake service to vehicle detailing and body repair, a wide variety of vehicles will fit.

Features:

• Each lift platform features four parallelogram frame support bars making it the strongest 10,000-pound low-rise lift in its class

• Drive-over ramps and side rails provide an increased width to support wider vehicles during approach

• Comes standard with a durable full length rubber-topped lifting platform and eight multi-height rubber topped adapters for increased vehicle contact versatility

• Storage trays are conveniently placed on each side of the lift platform to prevent wheel lug nuts and other small parts from being misplaced

• Dual hydraulic cylinders provide a stable 10,000-pound lifting capacity to accommodate a wide range of vehicles

• Diamond plated approach ramps help to prevent slipping

• Thee locking positions allow technicians to work at different working heights to increase productivity and minimize fatigue

• A hands-free safety lock release system is operated away from the lift and allows operators to safely deactivate the locks without the need to push or pull cumbersome release bars or lock release handles

• Powder coat finish provides a long lasting durable finish

• Included with every lift are detailed installation and maintenance instructions, graphic safety decals, maintenance decals, vehicle lifting point guide and a safety instruction placard to train personnel on proper safety procedures and maintenance guidelines

Specifications:

• Lifting Capacity | 10,000 lbs. (4,545 kg)

• Max Capacity / Front Axle | 5,000 lbs. (2,273 kg)

• Max Capacity / Rear Axle | 5,000 lbs. (2,273 kg)

• Lifting Height | 23" (584 mm)

• Lifting Height + Blocks | 32" (813 mm)

• 1st. Lock Position | 14" (356 mm)

• 2nd. Lock Position | 18" (457 mm)

• 3rd. Lock Position | 20.75" (527 mm)

• 4th Lock Position | 22.75" (578 mm)

• Overall Pad Length | 53" (1,346 mm)

• Overall Length | 82.65" (2,094 mm)

• Overall Pad Width | 24" (610 mm)

• Overall Width | 85" (2,159 mm)

• Lowered Height | 4.5" (114 mm)

• Lifting Time | 35 seconds

• Motor | 208-230VAC / 50-60Hz / 1 Ph

• Shipping Weight | 1,332-lbs. (604 kg)

• Shipping Dimensions | 88" x 85" x 24" (2,235 mm x 2,159 mm x 609 mm)
