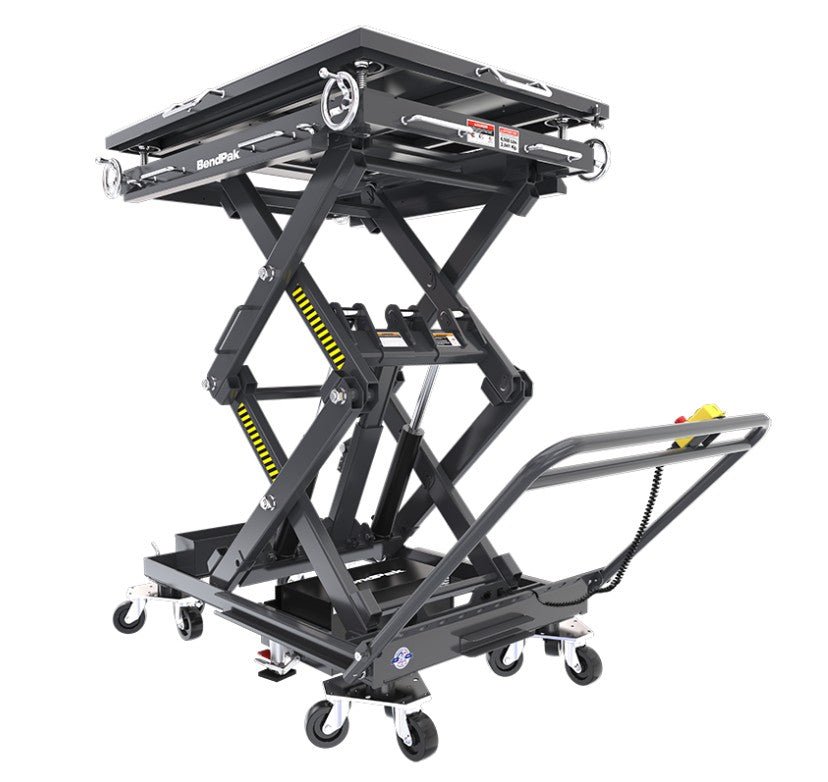

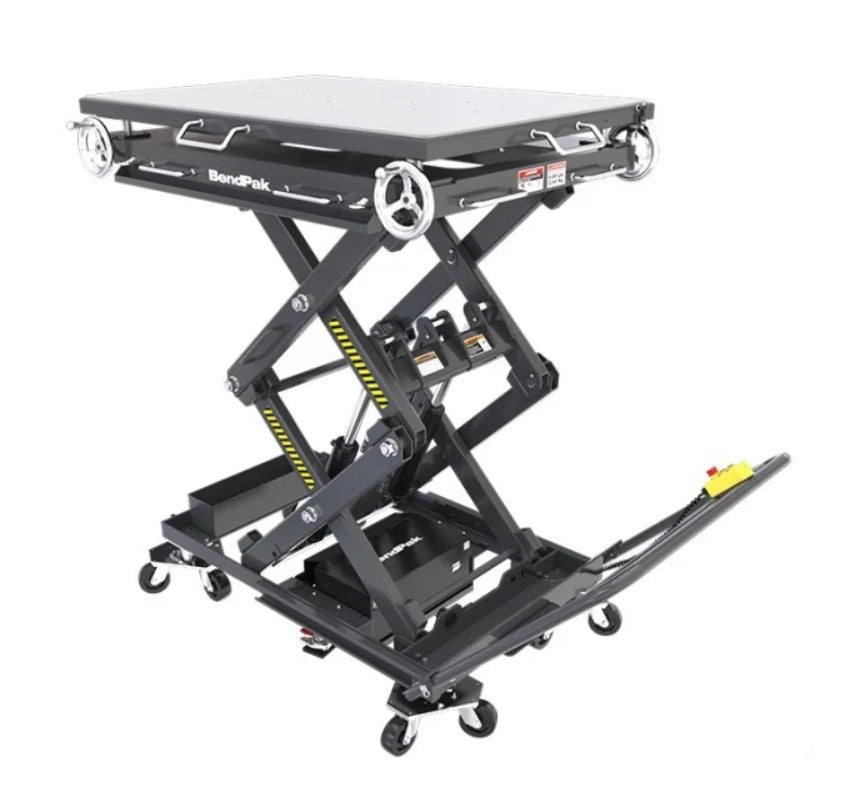

BendPak EVS45000 EV 4,500-lb Capacity Battery Lift

This product requires a forklift provided by the customer at the shipping destination to offload.

4,500 Lb. Cap. / EV Battery Pack and Powertrain Lift Table / Rechargeable 12V / Incl. Battery

BendPak’s revolutionary Mobi-EVS line of full-rise battery powered mobile scissor lift tables are perfectly suited for Electric Vehicle Service and EV Battery Pack replacement. The EVS4500 boasts a 4,500-lb. lift capacity and features a compact design which can be easily transported anywhere in the workplace, making them ideal for multi-bay facilities or workplaces with confined areas.

Features:

• Zero-throw casters for extreme maneuverability
• Adjustable screw jack
• Stowable tow bar
• Twin hydraulic cylinders
• Tri-caster locking pin
• DC Electric power system with onboard charging
• Multi-point safety locks
• Remote control operation
• Full-length utility trays
• Manual floor locks
• Hydraulic fail-safe circuit

Specifications:

• Lifting Capacity | 4,500 lbs. / 2,041 kg
• Maximum Rise | 77.75 in. / 1,972 mm
• Overall length | 91.25 in. / 2,318 mm
• Top Deck length (with handles) | 71.25 in. / 1,807 mm
• Top Deck Length | 63 in. / 1,600 mm
• Overall Width (with handles) | 53 in / 1,348 mm
• Top Deck Width | 42.75 in. / 1,088 mm
• Screw Jack Max. Adjustment | 1.5 in. / 38 mm
• Minimum Deck Height | 34.25 in. / 868 mm
• Height of Steering Handle |39.25 in. / 997 mm
• Motor | 12VDC
• Operating Pressure at Max Load | 1720 psi
• Battery Charger | Input: 120 VAC, 60 Hz. / Output: 12VDC, 15A
• Battery Charge Time | 10-12 Hours to full charge from ≈20%
• Lifting Time | ≈18 seconds
• Weight | 1,918 lbs. / 870 kg
