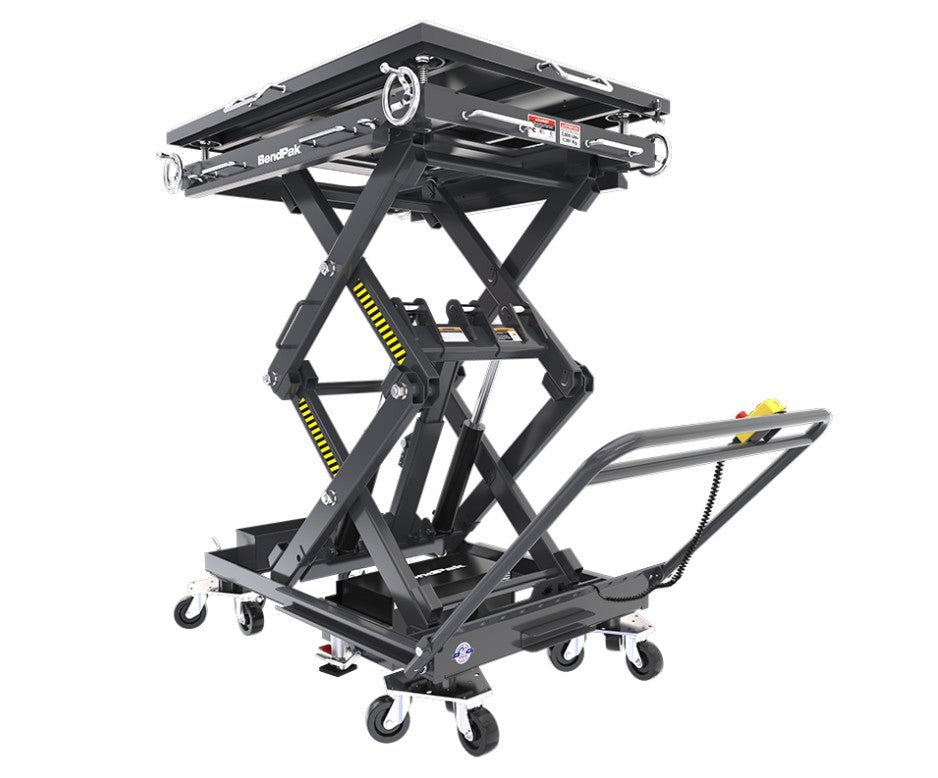

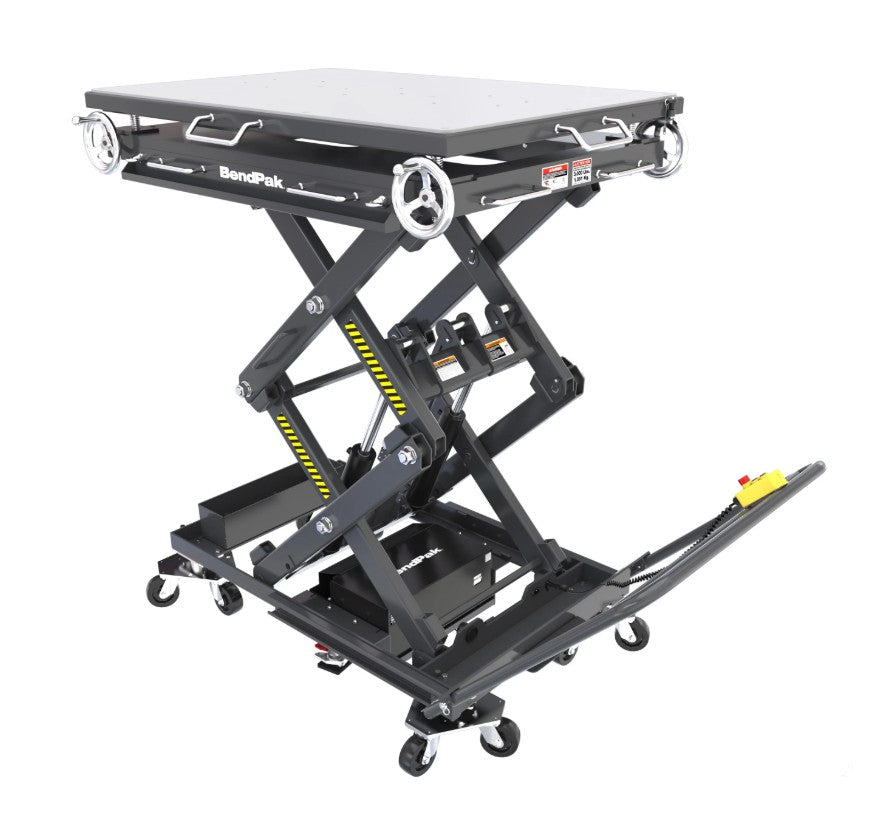

BendPak EVS3000 EV 3,000-lb Capacity Battery Lift

This product requires a forklift provided by the customer at the shipping destination to offload.

3,000 Lb. Cap. / EV Battery Pack and Powertrain Lift Table / Rechargeable 12V / Incl. Battery

The EVS300 is the latest in BendPak’s revolutionary Mobi-EVS line of full-rise battery powered mobile scissor lift tables and is perfectly suited for Electric Vehicle Service and EV Battery Pack replacement. With it, you’ll be able to safely handle critical vehicle components weighing up to 3,000 lbs. With a compact design, this space-saving lift table can be easily transported anywhere in the workplace, making the EVS3000 ideal for multi-bay facilities or workplaces with confined areas.

Features:

• Zero-throw casters for extreme maneuverability
• Adjustable screw jack
• Stowable tow bar
• Twin hydraulic cylinders
• Tri-caster locking pin
• DC Electric power system with onboard charging
• Multi-point safety locks
• Remote control operation
• Full-length utility trays
• Manual floor locks
• Hydraulic fail-safe circuit

Specifications:

• Lifting Capacity | 3,000 lbs. / 1,361 kg
• Maximum Rise | 77.75 in. / 1,972 mm
• Overall length | 91.25 in. / 2,318 mm
• Top Deck length (with handles) | 71.25 in. / 1,807 mm
• Top Deck Length | 63 in. / 1,600 mm
• Overall Width (with handles) | 53 in / 1,348 mm
• Top Deck Width | 42.75 in. / 1,088 mm
• Screw Jack Max. Adjustment | 1.5 in. / 38 mm
• Minimum Deck Height | 34.25 in. / 868 mm
• Height of Steering Handle | 39.25 in. / 997 mm
• Motor | 12VDC
• Operating Pressure at Max Load | 1250 psi
• Battery Charger | Input: 120 VAC, 60 Hz. / Output: 12VDC, 15A
• Battery Charge Time | 10-12 Hours to full charge from ≈20%
• Lifting Time | ≈18 seconds
• Weight | 1,918 lbs. / 870 kg
