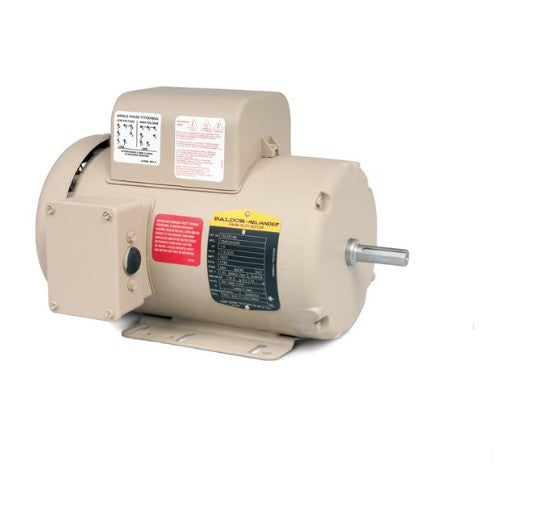

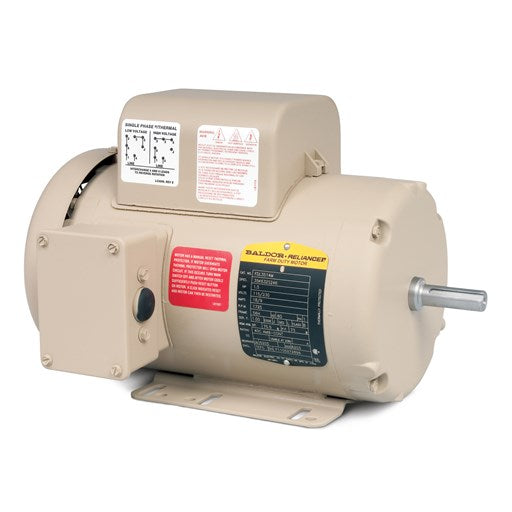

Baldor FDL3611TM 2HP, 1800 RPM, 1PH, 60HZ, 182T, TEFC

Applications:

• Agri-Duty
• Industrial Fans
• General Purpose Farm
• Industrial Pumps

Features:

• Lubed for life double sealed ball bearings
• Lip Seal and V-Ring slinger on DE for increased moisture resistance
• Gasketed manual reset thermal overload protection

Specifications:

• Catalog Number | FDL3611TM
• Spec | 36Q168-3444G1
• HP | 2
• Voltage | 115/230
• AMP | 28/14
• RPM | 1725
• Frame | Material Steel
• Hurtz | 60
• Phase | 1
• Nema-Nom-EFF | 75
• Enclosure | TEFC
• Output @ Frequency | 2.000 HP @ 60 HZ
• Synchronous Speed @ Frequency | 1800 RPM @ 60 HZ
• Voltage @ Frequency | 115.0 V @ 60 HZ // 230.0 V @ 60 HZ
  XP Division | Not Applicable
• Ambient Temperature | 40 °C
• Auxillary Box | No
• Auxillary Box Lead Termination | None
• Base Indicator | Rigid
• Bearing Grease Type |  Polyrex EM (-20F +300F)
• Blower | None
• Current @ Voltage| 14.000 A @ 230.0 V // 28.000 A @ 115.0 V

• Drip Cover | No Drip Cover
  Electrically Isolated Bearing | Not Electrically Isolated
• Feedback Device | NO FEEDBACK
• High Voltage Full Load Amps | 14.0 a
• Front Face Code | Standard
• Front Shaft Indicator | None
• Heater Indicator | No Heater
• Insulation Class | F
• Inverter Code | Not Inverter
• KVA Code | J
• Lifting Lugs | No Lifting Lugs
• Locked Bearing Indicator | No Locked Bearing
• Motor Lead Exit | Ko Box
• Overall Length | 16.55 IN
• Power Factor | 67
• Product Type | FARM DUTY
• Service Factor | 1.00
• Shaft Diameter | 1.125 IN
• Speed | 1725 rpm
• Motor Standards | NEMA
• Thermal Device | Bearing None
• Thermal Device | Winding None
• Vibration Sensor Indicator | No Vibration Sensor
• Winding Thermal | 1Manual Thermal Overload
• Winding Thermal | 1 Location KO
• Winding Thermal | 2 None
