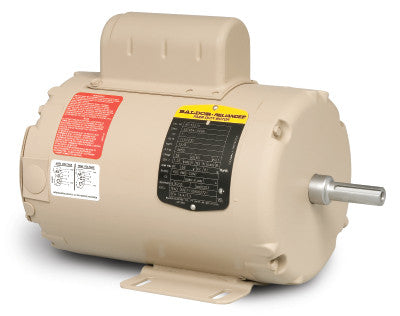

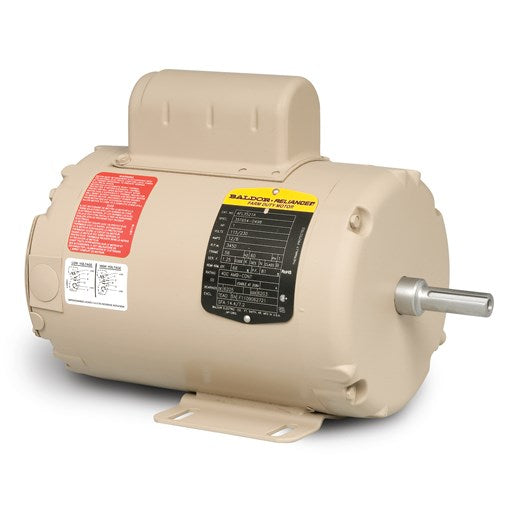

Baldor AFL3525A 1.5 HP 3450 RPM TEAO Single Phase Aeration Fan Motor

Lubrication fittings on Nema T frames for easy on-site maintenance, designed for powering aeration fans used on farm grain storage, exhaust fans, air handling systems. Ball bearings, Corrosion protected with epoxy finish, normally-closed thermostats on three phase motors, 41 pounds.

Specifications:

• SPEC. NUMBER | 35T954-0525
• CATALOG NUMBER | AFL3525A
• FL AMPS | 16.6/8.3
• 208V AMPS | 8.6
• BEARING-DRIVE-END | 6205
• BEARING-OPP-DRIVE-END | 6203
• DESIGN CODE | L
• FL EFFICIENCY | 70
• ENCLOSURE | TEAO
• FRAME | 56
• HERTZ | 60
• INSULATION-CLASS | B
• KVA-CODE | H
• SPEED [rpm] | 3450
• OUTPUT [hp] | 1.5
• PHASE | 1
• POWER-FACTOR | 82
• RATING | 40C AMB-CONT
• SERVICE FACTOR | 1.0
• VOLTAGE | 115/230
