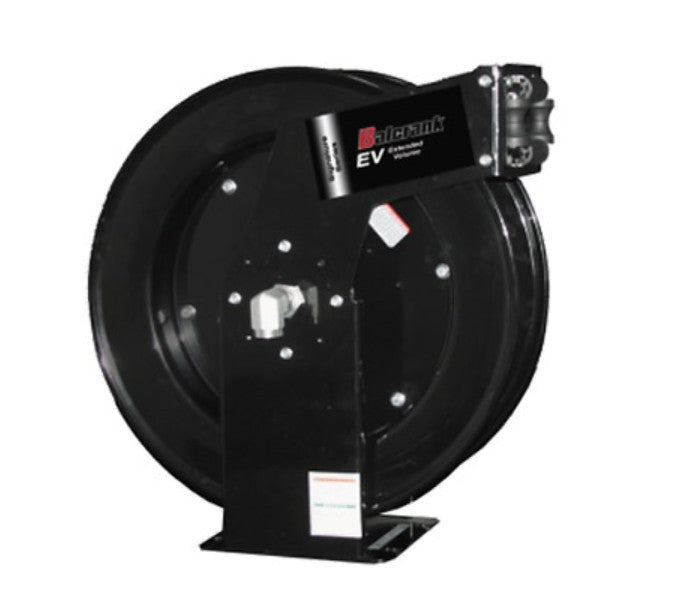

Balcrank 2400-011 Extended Volume Diesel Exhaust Fluid Low Pressure 50' x 3/4" Hose Reel, 150psi

Images are representative and for illustrative purposes only, actual product may differ from image shown.

The Extended Volume, EV Series hose reels are engineered for high volume heavy-duty applications where large hose diameters are needed for increased flow. The EV hose reel is ideal for heavy-duty fleet, construction, mining and industrial applications. All EV series reels include hose, hose stop and a 2.5’ connecting hose. The Balcrank EV Low Pressure Hose Reel is ideal for delivery of DEF. The EV Hose Reel combines design, performance and reliability with the right features and benefits for your low pressure hose reel needs.

Features:

• 150 psi

• Up to 65' x 1/2" or 50' x 3/4"

• Superb corrosion resistance

• 8-gauge steel base and outlet arm

• Fully ported shaft and pressure balanced swivel

• High quality, long life power spring

• Spool mounted on dual ball-bearings

• Rectangular hose guide outlet with rollers

• Multi-position outlet arm

• Ten-position latching mechanism

• Fluid compatibility for multiple applications

• Easy maintenance and service

• 2.5' inlet connecting hose included

Specifications

• Fluid inlet port | 3/4" BSPP(F) swivel

• Fluid outlet port | 3/4" BSPP(F) swivel

• Hose outlet thread | 3/4" BSPP (M) for 3/4" ID Hoses

• Wetted materials | Stainless Steel, Polypropylene, & Viton
