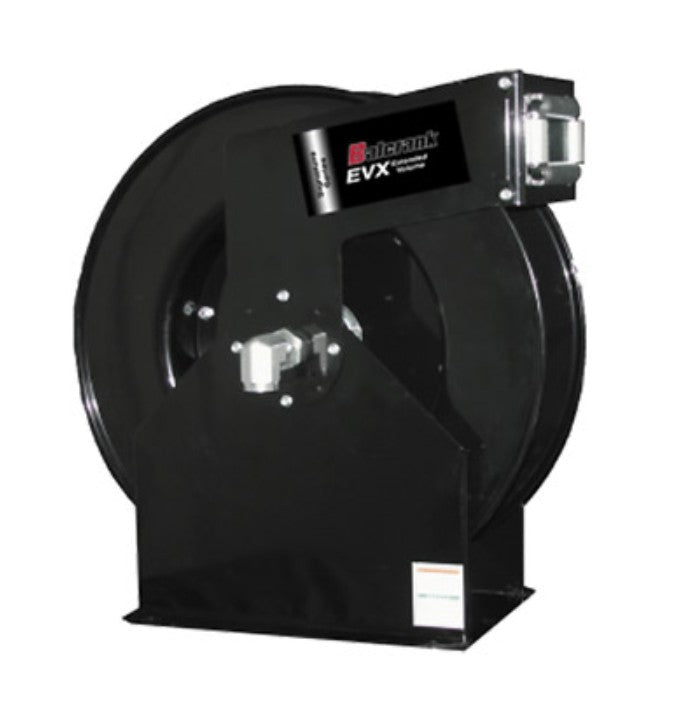

Balcrank 2310-045 Extended Volume Extra, Medium Pressure 50' x 1" Hose Reel, Oil, 1525psi

Images are representative and for illustrative purposes only, actual product may differ from image shown.

The Extended Volume Extra, EVX Series hose reels are engineered for high volume heavy-duty applications where large hose diameters are needed for increased flow. The EVX hose reel is ideal for heavy-duty fleet, construction, mining and industrial applications. All EVX series reels include hose, hose stop and a 2.5’ connecting hose. The Balcrank EVX Low Pressure Hose Reel is ideal for delivery of air, water, windshield wash fluid, and anti-freeze. The EVX Hose Reel combines design, performance and reliability with the right features and benefits for your low pressure hose reel needs.

Features:

• Superb corrosion resistance

• 8-gauge steel base and outlet arm

• Fully ported shaft and pressure balanced swivel

• High quality, long life power spring

• Spool mounted on dual ball-bearings

• Rectangular hose guide outlet with rollers

• Multi-position outlet arm

• Ten-position latching mechanism

• Fluid compatibility for multiple applications

• Easy maintenance and service

• 2.5' inlet connecting hose included

Specifications:

• Fluid inlet port | 1" NPT(F) swivel

• Fluid outlet port | 1" NPT(F) swivel

• Hose outlet thread | 1/2" NPT(M) for 1/2" ID Hoses

• Hose outlet thread | 3/4" NPT(M) for 3/4" ID Hoses

• Hose outlet thread | 1" NPT(M) for 1" ID Hoses

• Wetted materials | Nickel plated steel & Buna-N
