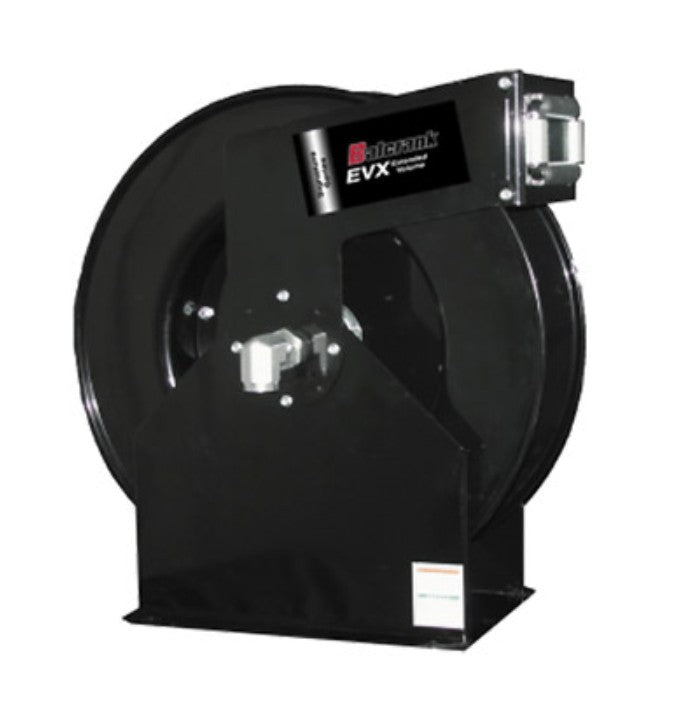

Balcrank 2310-036 Extended Volume Extra, Low Pressure 75' x 1/2" Hose Reel, Air & Water, 300psi

Images are representative and for illustrative purposes only, actual product may differ from image shown.

The Extended Volume Extra, EVX Series hose reels are engineered for high volume heavy-duty applications where large hose diameters are needed for increased flow. The EVX hose reel is ideal for heavy-duty fleet, construction, mining and industrial applications. All EVX series reels include hose, hose stop and a 2.5’ connecting hose. The Balcrank EVX Low Pressure Hose Reel is ideal for delivery of air, water, windshield wash fluid, and anti-freeze. The EVX Hose Reel combines design, performance and reliability with the right features and benefits for your low pressure hose reel needs.

Features:

• Superb corrosion resistance

• 8-gauge steel base and outlet arm

• Fully ported shaft and pressure balanced swivel

• High quality, long life power spring

• Spool mounted on dual ball-bearings

• Rectangular hose guide outlet with rollers

• Multi-position outlet arm

• Ten-position latching mechanism

• Fluid compatibility for multiple applications

• Easy maintenance and service

• 2.5' inlet connecting hose included

Specifications:

• Fluid inlet port | 1" NPT(F) swivel

• Fluid outlet port | 1" NPT(F) swivel

• Hose outlet thread | 1/2" NPT(M) for 1/2" ID Hoses

• Hose outlet thread | 3/4" NPT(M) for 3/4" ID Hoses

• Hose outlet thread | 1" NPT(M) for 1" ID Hoses

• Wetted materials | Nickel plated steel & Buna-N
