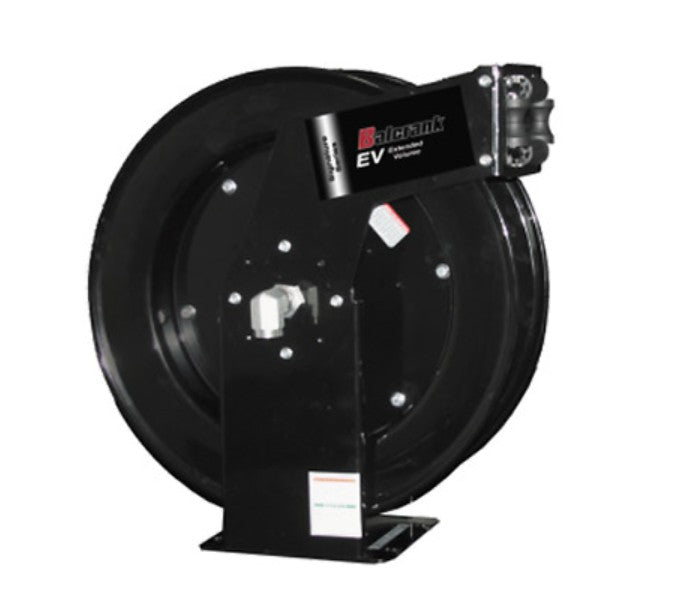

Balcrank 2310-033 Extended Volume Bare Hose Reel

Images are representative and for illustrative purposes only, actual product may differ from image shown.

Air & Water Low Pressure | Oil Medium Pressure | Diesel Low Pressure

The Extended Volume, EV Series hose reels are engineered for high volume heavy-duty applications where large hose diameters are needed for increased flow. The EV reels will handle up to 50' of 3/4" ID hose or 65' of 1/2" ID hose. The EV hose reel is ideal for heavy-duty fleet, construction, mining and industrial applications. The Balcrank EV Low Pressure Hose Reel is ideal for delivery of air, water, windshield wash fluid, and anti-freeze. The EV Hose Reel combines design, performance and reliability with the right features and benefits for your low pressure hose reel needs.

Features:

• Superb corrosion resistance

• 8-gauge steel base and outlet arm

• Fully ported shaft and pressure balanced swivel

• High quality, long life power spring

• Spool mounted on dual ball-bearings

• Rectangular hose guide outlet with rollers

• Multi-position outlet arm

• Ten-position latching mechanism

• Fluid compatibility for multiple applications

• Easy maintenance and service

• 2.5' inlet connecting hose included

Specifications:

• Fluid inlet port | 3/4" NPT(F) swivel

• Fluid outlet port | 3/4" NPT(F) swivel

• Hose outlet thread | 1/2" NPT(M) for 1/2" ID Hoses

• Hose outlet thread | 3/4" NPT(M) for 3/4" ID Hoses

• Wetted materials | Nickel plated steel & Buna-N
