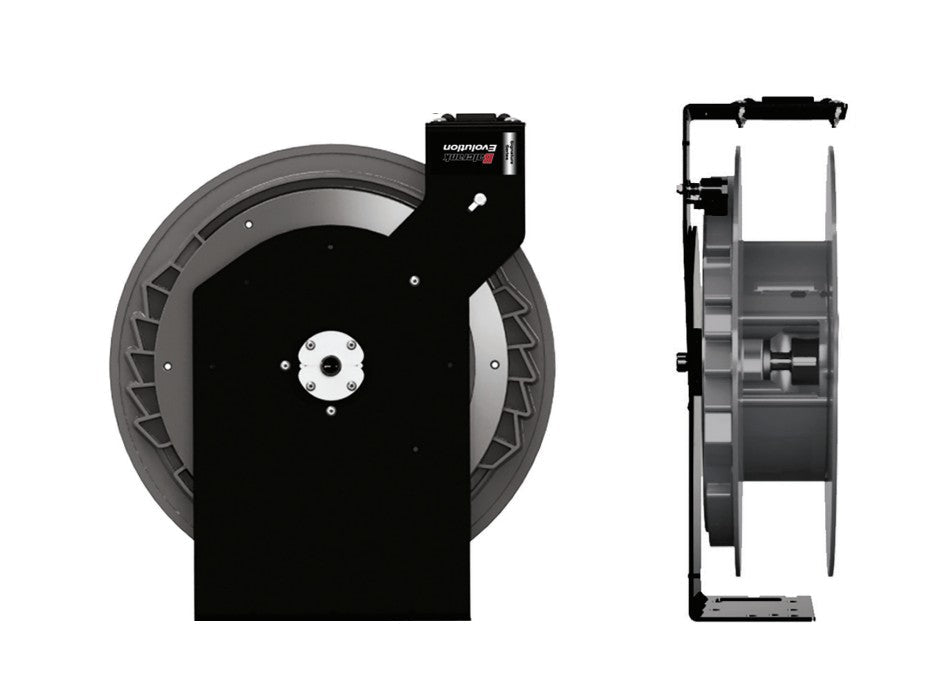

Balcrank 2140-002 Evolution Medium Pressure Hose Reel, Oil, Bare Reel Only

Images are representative and for illustrative purposes only, actual product may differ from image shown.

The Evolution Hose Reel is lightweight but extremely rugged. Engineered with a steel pedestal, steel arm, and dual ball-bearings, the Evolution is a solid performer. All Evolution series hose reels have a narrow and lightweight design. The Evolution Medium Pressure Hose Reel is ideal for delivery of oil. The Balcrank Evolution combines design, performance and reliability with the right features and benefits for your medium pressure hose reel needs.

Features:

• 2750 PSI

• 50 ft hose capacity

• Superb corrosion resistance

• Superior structural design and stability

• Fully ported shaft and pressure balanced swivel

• High quality, long life power spring

• Spool mounted on dual ball-bearings

• Rectangular hose guide outlet with rollers

• Multi-Positioning outlet arm

• Eight-position latching mechanism

• Fluid compatibility for multiple applications

• Easy maintenance and service

• Easy on-site tension adjustment

• Easy installation mounting and accessories

• Made in USA

Specifications:

• Fluid inlet port | 1/2" NPT(F) swivel

• Fluid outlet port | 1/2" NPT(F) swivel

• Hose outlet thread | 1/4" NPT(M) for 3/8" ID Hoses

• Hose outlet thread | 1/2" NPT(M) for 1/2" ID Hoses

• Wetted materials | Steel (plated) & Buna-N
