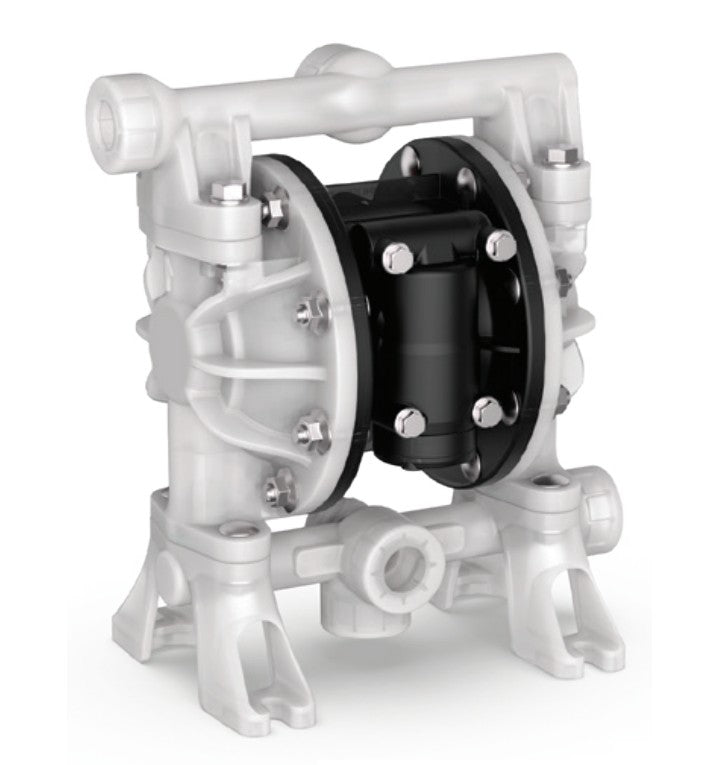

Balcrank 1120-047 UP05 1/2" Polypropylene Pump

The Pivot Series combines a universal design with a unique frictionless Pivot-Shaft Air Valve to provide maximum performance and efficiency. This pump has been designed for simplified cleaning and maintenance and all Pivot Series pumps are designed for maximum fluid flow, and reduced air consumption.
The UP05 Pivot Series pump transfers fluid up to 14 gal/min. Combining a conventional flow design with a special pivoting air valve for increased reliability. This pump can be used as a stand-alone pump for transfer or as a system pump for fluid distribution

Markets Served:

• Car and truck dealers

• Fleets

• Mining and construction

• Lube Trucks

• In-plant transfer

• Agriculture/Farm implement

Specifications:

• Air inlet | 1/4" NPT(F)

• Fluid inlet port | 1/2" NPT(F)

• Fluid outlet port | 1/2" NPT(F)

• Max. free flow | 14.3 gal/min (54 l/min)

• Air pressure range | 20 to 120 psi (1.5 to 8 bar)

• Solids in suspension | 3/32" (2.5 mm)

• Recommended Fluids | Anti-freeze (Glycol), windshield wash solution, lubricants, used fluid, and hydraulic oil

• Recommended Applications | Medium volume transfer, de-wattering and fluid evacuation

• Service Bulletin | SB 1211

• Ship Weight | 28 lbs
