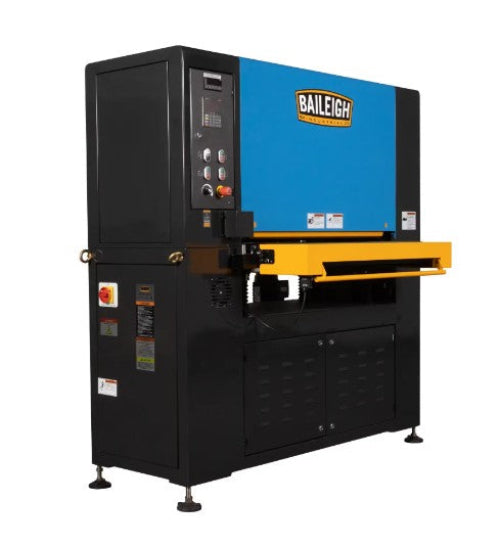

Baileigh Industrial WBS-37V 37" x 60" Wide Belt Sander with Vacuum 230V 3PH

Small or lightweight parts tend to slide, lift, or chatter on a standard wide-belt sander table — which is why many shops still finish them by hand. The Baileigh WBS-37V solves that with a 5 HP vacuum conveyor that holds workpieces as small as 2" x 2" firmly in place. The 10 HP main motor and 1720 RPM belt drive deliver the same up to 2,700 FPM abrasive belt speed as Baileigh’s standard WBS-37, and the variable 2–26 FPM conveyor handles thickness from 1/64" to 6" across mild steel, stainless steel, non-ferrous metals, and plastics. Auto sanding height adjustment, a digital readout, and 10 programmable presets streamline changeovers, while auto belt tracking keeps the abrasive centered. UL 987-certified safety systems and a 1-year parts warranty plus Baileigh Lifetime Technical Support round out the machine.

Features:

• 5 HP vacuum hold-down system enables a class-leading 2" x 2" minimum part size for small-part sanding

• Vacuum conveyor holds down small or lightweight parts that would otherwise require manual polishing benches

• 10 HP main motor and 37" x 60" belt provide the same finishing power as Baileigh’s standard WBS-37

• Handles material from 1/64" to 6" thick, finer than the non-vacuum WBS-37

• Auto sanding height adjustment with 10 programmable presets speeds repeat setups

• Auto belt tracking keeps the abrasive centered, reducing uneven wear

• UL 987-certified door interlocks, E-stop, and quick-stop abrasive belt e-brake protect operators

• 5" dust port mounts overhead to a Baileigh dust collector for efficient dust and chip removal

• 1-year parts warranty plus Baileigh Lifetime Technical Support for long-term uptime

Specifications:

• SKU | BA1-12446

• Abrasive Type | Belt

• Assembled Dimensions | 65.9" x 52.4" x 73.8"

• Belt Size | 9" x 48"

• Belt Speed | 1720 FPM

• Conveyor Gear Box Ratio | 1/100

• Conveyor Motor (HP) | 1/4 hp

• Conveyor Speed | 2 - 16 FPM Variable Speed

• Dust Port Outside Diameter | 5"

• Horse Power | 10

• Infeed Table Length | 19.3"

• Input Power | 230V Single Phase

• Maximum Material Width | 37"

• Minimum Material Length | 8"

• Minimum Material Thickness | 1/64"

• Model Number | WBS-37V

• Motor Amps | 25

• Motor HP | 10

• Motor Phase | Three

• Motor Voltage | 230

• Number of Belt Speeds | 1

• SAP Gross Weight | 2055 lbs

• SAP Net weight | 1720 lbs

• UPC | 019907009870

• Warranty | 1 Year
