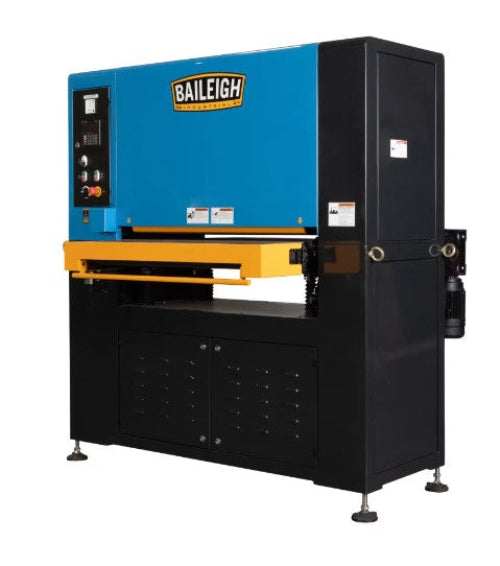

Baileigh Industrial WBS-37H 37" x 60" Wide Belt Sander 460V 3PH

The Baileigh WBS-37H is the 460V/3-phase version of Baileigh’s 37" x 60" wide belt sander, built for fabrication, precision machining, and MRO shops running higher-voltage service. Its 10 HP main motor and 1720 RPM belt drive produce up to 2,700 FPM of abrasive belt speed, and the variable 2–26 FPM conveyor handles material from 1/32" to 6" thick and up to 37" wide. Auto sanding height adjustment, a digital readout, and 10 programmable height presets simplify repeat setups, while auto belt tracking keeps the abrasive centered to extend belt life. UL 987-certified door interlocks, an E-stop, and a quick-stop abrasive belt e-brake protect operators, and the machine carries a 1-year parts warranty plus Baileigh Lifetime Technical Support.

Features:

• 460V/3-phase motor suits higher-voltage shop electrical service

• 10 HP main motor and 37" x 60" belt handle large workpieces and heavy stock removal

• Auto sanding height adjustment with 10 programmable presets speeds repeat changeovers

• Auto belt tracking keeps the abrasive centered, reducing uneven wear and downtime

• Variable 2-26 FPM conveyor and 1/32"-6" thickness range adapt to a wide range of parts

• UL 987-certified door interlocks, E-stop, and quick-stop abrasive belt e-brake protect operators

• 5" dust port mounts overhead to a Baileigh dust collector for efficient chip removal

• Well suited to deburring, slag removal, and surface finishing across mixed metal materials

• 1-year parts warranty plus Baileigh Lifetime Technical Support for long-term uptime

Specifications:

• SKU | BA1-11226

• Abrasive Type | Belt

• Assembled Dimensions | 65.9" x 52.4" x 73.8"

• Belt Size | 9" x 48"

• Belt Speed | 1720 FPM

• Conveyor Gear Box Ratio | 1/100

• Conveyor Motor (HP) | 1/4 hp

• Conveyor Speed | 2 - 16 FPM Variable Speed

• Dust Port Outside Diameter | 5"

• Horse Power | 10

• Infeed Table Length | 19.3"

• Input Power | 230V Single Phase

• Maximum Material Width | 37"

• Minimum Material Length | 8"

• Minimum Material Thickness | 1/32"

• Model Number | WBS-37H

• Motor Amps | 25

• Motor HP | 10

• Motor Phase | Three

• Motor Voltage | 460

• Number of Belt Speeds | 1

• SAP Gross Weight | 1923 lbs

• SAP Net Weight  | 1587 lbs

• UPC | 019907003182

• Warranty | 1 Year
