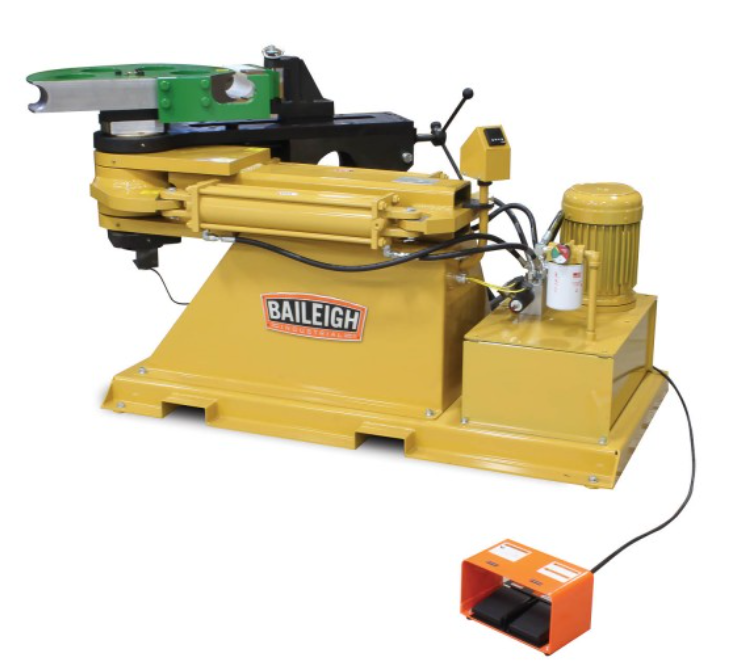

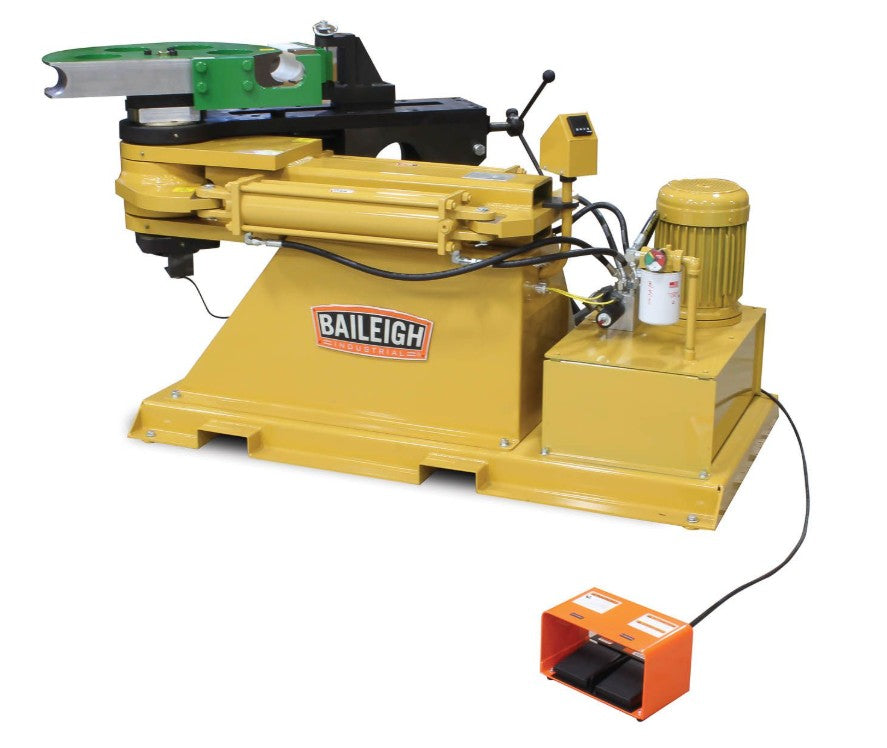

Baileigh Industrial RDB-500 Hydraulic Pipe Bender

If you need to bend big pipe, really big pipe, then the RDB-500 is the perfect rotary draw bender for you. The RDB-500 has a maximum capacity is 3" Schedule 40 pipe, 3" square,& 3.5" round tube (.188 wall mild steel). The maximum center line radius is 12" (depending on wall thickness, and material). The RDB-500 pipe bender has one shot bending up to 206 degrees without stopping or ratcheting and is variable speed as controlled by the operator via a foot pedal. The RDB-500 also has a digital auto-stop that will accurately stop the bending process when the bend gets to the desired degree. Powered by 220 volt three phase power, the RDB-500 uses an industrial grade low pressure hydraulic system to handle all the bending. Like all Baileigh Industrial benders, the RDB-500 has a fast cycle time which makes any job more efficient. The RDB-500 pipe bender utilizes Baileigh Industrials “drop on” tooling which will allow you to chose from over 5000 different configurations of outside diameters and center line radii. If we don’t stock it we can also make a custom die set as well. Consistent with all RMD tube Benders, this rotary draw bender is made of solid steel construction and weighs an impressive 1800 lbs.

Manufactured in the USA

See Die Sets below.  For individual die prices please call us at 800-837-3818 or email sales@mile-x.com

Specifications:

• Minimum CLR | .5"
• Minimum OD | .25"
• Mild Steel Solid Rod | 2"
• Mild Steel Pipe Schedule | 40 3"
• Mild Steel Round Tube Wall | 3" (.250)
• Mild Steel Square Tube (Wall) | 3" (.250)
• Stainless Steel Pipe Schedule | 40 2.5"
• Stainless Steel Round Tube Wall | 3.5" (.187)
• Chromoly Round Tube Wall | 3.5" (.187)
• Aluminum Round Tube Wall | 3.5" (.250)
• Maximum Center Line Radius Clr | 20"
• Power | 220V / 3-phase
• Shipping Weight | 1800 Lbs
• Shipping Dimensions | 70" x 56" x 41"

* specifications subject to change without notice.
