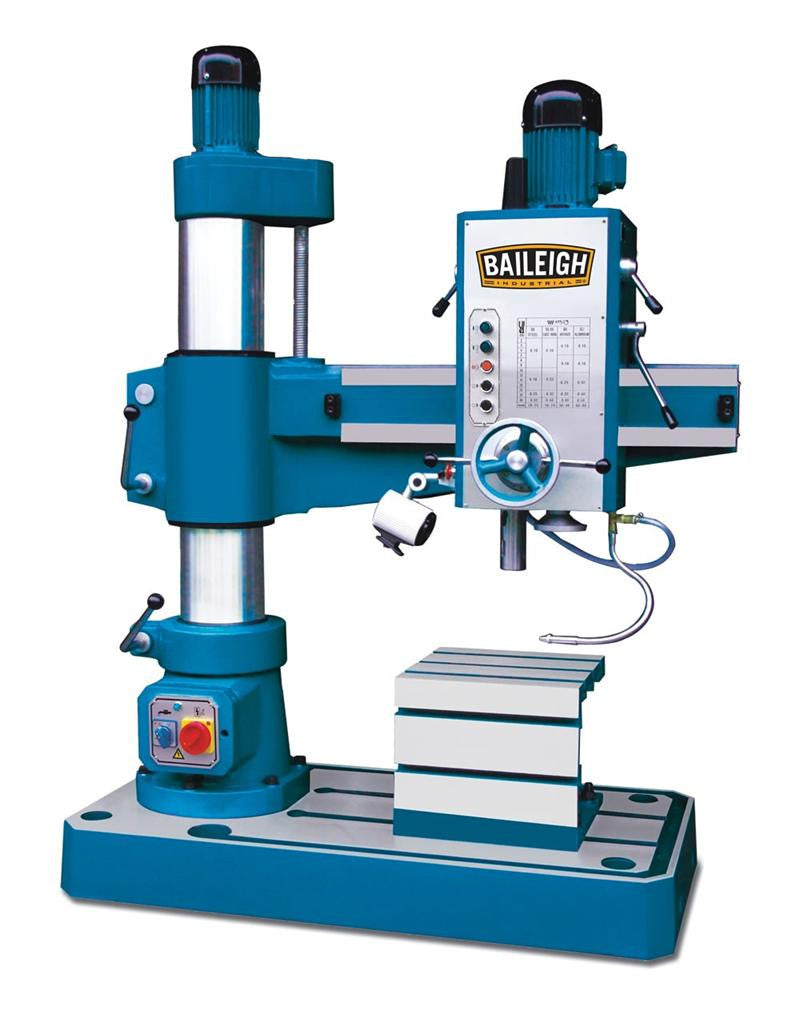

Baileigh Industrial RD-1000M Radial Arm Drill Press

Please Call 800-837-3818 for Freight Quote and Availability!

MADE IN TAIWAN

Features:

• 1.57" maximum drilling capacity
• Heavy duty construction
• Power down feed
• MT4 spindle
• 39.3" Reach
• 9.4" Column
• Box Shape Worktable

Specifications:

• Max. Drill Capacity | 1.57"
• Distance from Spindle to Column Center | 7.8" to 39.3"
• Diameter of Column | 9.4"
• Spindle Taper | MT4
• Spindle Travel | 9.8"
• Spindle Speed Range | 71 to 1800 rpm
• Range of Spindle Feeds | .005" to .02"
• Spindle Feeds | 4
• Distance Between Spindle Nose and Base | 10.3" to 41.8"
• Table Size | 15.7" x 17.7" x 15.7"
• Base Size | 29" x 20"
• Overall Size | 68" x 29.5" x 93"
• Motor | 2 hp (Spindle) | 3/4 hp (Lifting)
• Coolant Pump | 1/8 hp
• Power | 220V 3-phase
• Shipping Weight | 3,740 lbs.
• Shipping Dimensions | 74" x 39" x 87"

*Specifications subject to change without notice.
