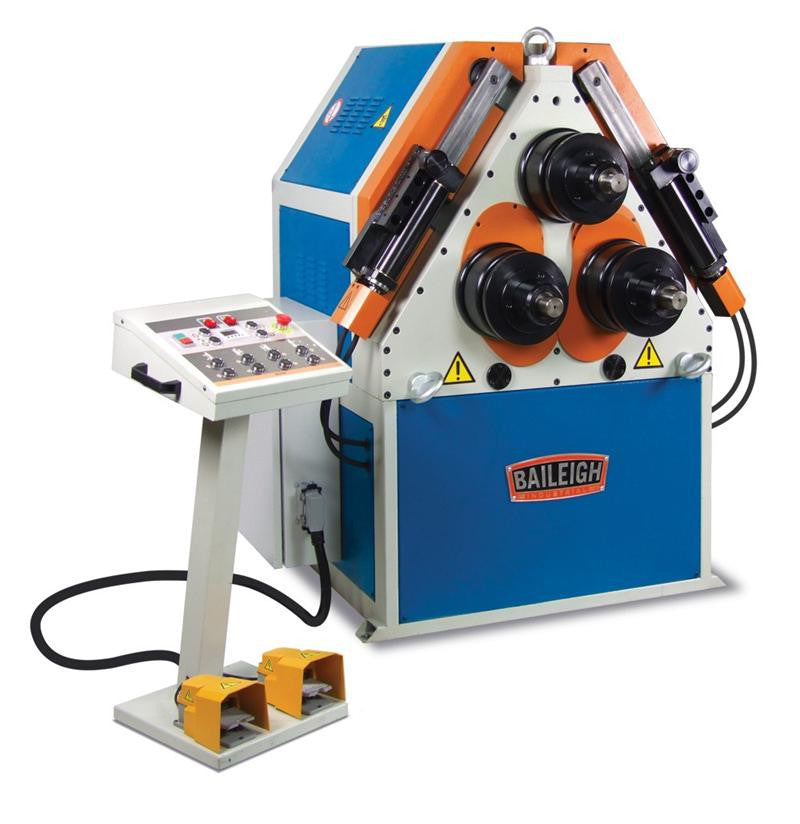

Baileigh Industrial R-H85 Hydraulic Roll Bender

*** Please Call or email to verify that the sale price is still valid prior to purchase as Baileigh does not notify us when items go off sale ***

Baileigh Industrial’s R-H85 double pinch angle roll machine is a great choice for a roll bender when looking to reduce scrap. The R-H85 is considered a double pinch roll bender since the top roll is fixed and the two bottom rolls are on independent hydraulic cylinders with encoders that communicate to the DRO programmers for exact positioning of each roll. The double pinch design helps minimize those money wasting pieces of straight that are commonly found at the start and finish of the bend by allowing the operator to pre and post bend the material. The R-H85 is capable of bending up to 3" Schedule 40 pipe and 3-3/8" x 3-3/8" x 1/4" angle iron. It is built to last using heavy steel plate that is bolted and welded for further structural strength allowing for no flex at full capacity. This angle bending roll comes standard with an industrial grade hydraulic transmission that drives all three rolls. The same hydraulic system controls the movement of the angle lateral guide rolls as well. These rolls help keep the material from twisting while being bent.

Manufactured in Portugal

Please call 800-837-3818 for Freight Quote!

Specifications:

• Roll Adjustment | Hydraulic
• Pipe Capacity Size | 3" (sch. 40) / Min. Dia.: 68"
• Round Tube Capacity Size | 4" (.120") / Min. Dia.: 118"
• Square Tube Capacity Size | 2.75" (.157") / Min. Dia.: 118"
• Solid Round Capacity Size | 2.375" / Min. Dia. 40"
• Flat Bar Easy Way Size | 5" (1") / Min. Dia. 24"
• Flat Bar Hard Way Size | 4" (.787")/ Min. Dia.: 83"
• Angle Iron Capacity Size | 3.375" (.250")/ Min. Dia.: 68"
• Shaft Diameter | 3.15"
• Lower Roll Dia. | 9.65"
• Pinch | Double
• Digital Readout | Yes
• Power | 220V / 3-phase
• Shipping Weight |m3,550 lbs.

*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.

* specifications subject to change without notice.
