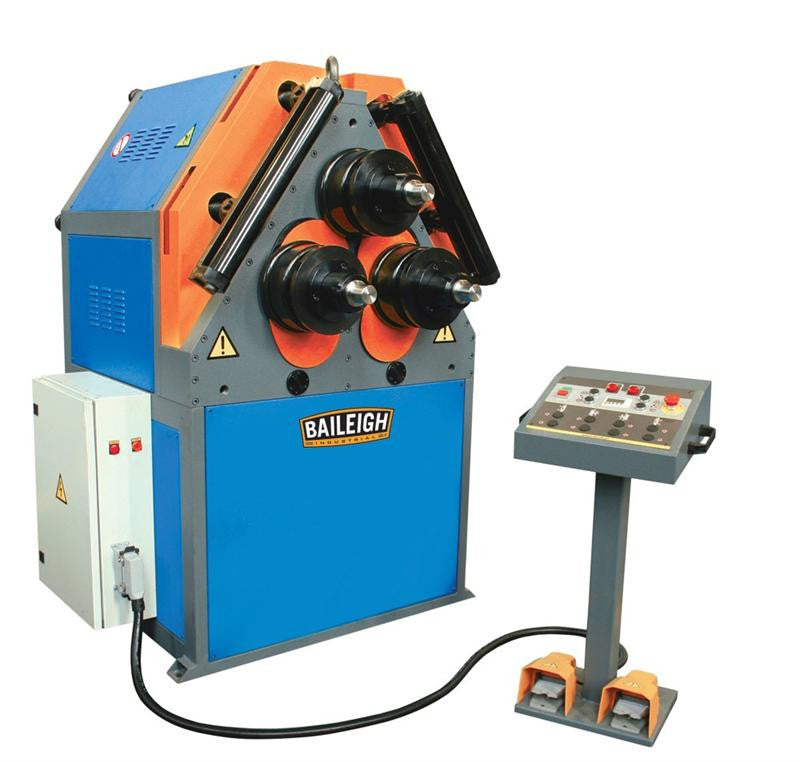

Baileigh Industrial R-H120E Double Pinch Profile Bender

Our R-H120E hydraulic tubing roller costs less than our R-H120 ring roller but offers many of the same time-saving features. Tough steel construction maintains accuracy—and sets this pipe bender apart from most competing models, which lack the structural strength of the R-H120E. This double-pinch pipe bender reduces wasted straight material at bend ends. Digital readout displays roll position to simplify the chore of checking bend specifications and increase repeatability during production runs. Overload-protected inverter drive cuts down on unnecessary machine wear and tear. The R-H120E accepts a variety of optional tooling sets to fit your applications. Baileigh’s after-sale support policy lets you call our team of representatives, all of whom have hands-on experience with our machines, for help or application tips any time.

Features:

• Runs on 220-volt 3-phase power.
• 3 driven rolls, made of hardened segmented steel, can tackle a capacity of up to 5.5” round tube and 4.5” schedule 40 pipe.
• 2 independent hydraulic cylinders connected to bottom rolls accomplish pre- and post-bending for tighter rolling.
• You can manually adjust the lateral angle guides to ensure correct bend angle and prevent material from twisting.
• Movable operator control podium includes digital readout for the roll positions with a programmable stop.
• Convenient foot pedals, attached to podium base, let you stop and start the roller in forward and reverse directions.
• Shift the machine between vertical and horizontal positions depending on the material and the bend radius.
• Heavy-duty steel frame is bolted and welded to eliminate flex when bending at full capacity.
• Baileigh covers this tube roller with a 1-year parts warranty as well as lifetime technical support by phone.

Specifications:

• Item Number | R-H120E
• Driven Rolls | 3
• Roll Adjustment | Hydraulic
• Round Tube Capacity Size | 5.5" (.120") / Min. Dia.: 118"
• Square Tube Capacity Size | 4" (.196") / Min. Dia.: 118"
• Solid Square Capacity Size | 2.375" / Min. Dia. 46"
• Solid Round Capacity Size | 2.75" / Min. Dia. 32"
• Flat Bar Easy Way Size | 7.875" (2") / Min. Dia.: 40"
• Flat Bar Hard Way Size | 4" (.984") / Min. Dia.: 63"
• Angle Iron Capacity Size | 4" (.393") / Min. Dia.: 63"
• Shaft Diameter | 3.937"
• Upper Roll Diameter | 9.65"
• Speed | 5.5 rpm.
• Motor | 10.5 hp.
• Pinch | Double
• Digital Readout | Yes
• Power 220V | 3-Phase
• Shipping Weight | 4,975 lbs.
• Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
• *Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
• Shipping Dimensions | 63" x 62" x 77"

* specifications subject to change without notice.
