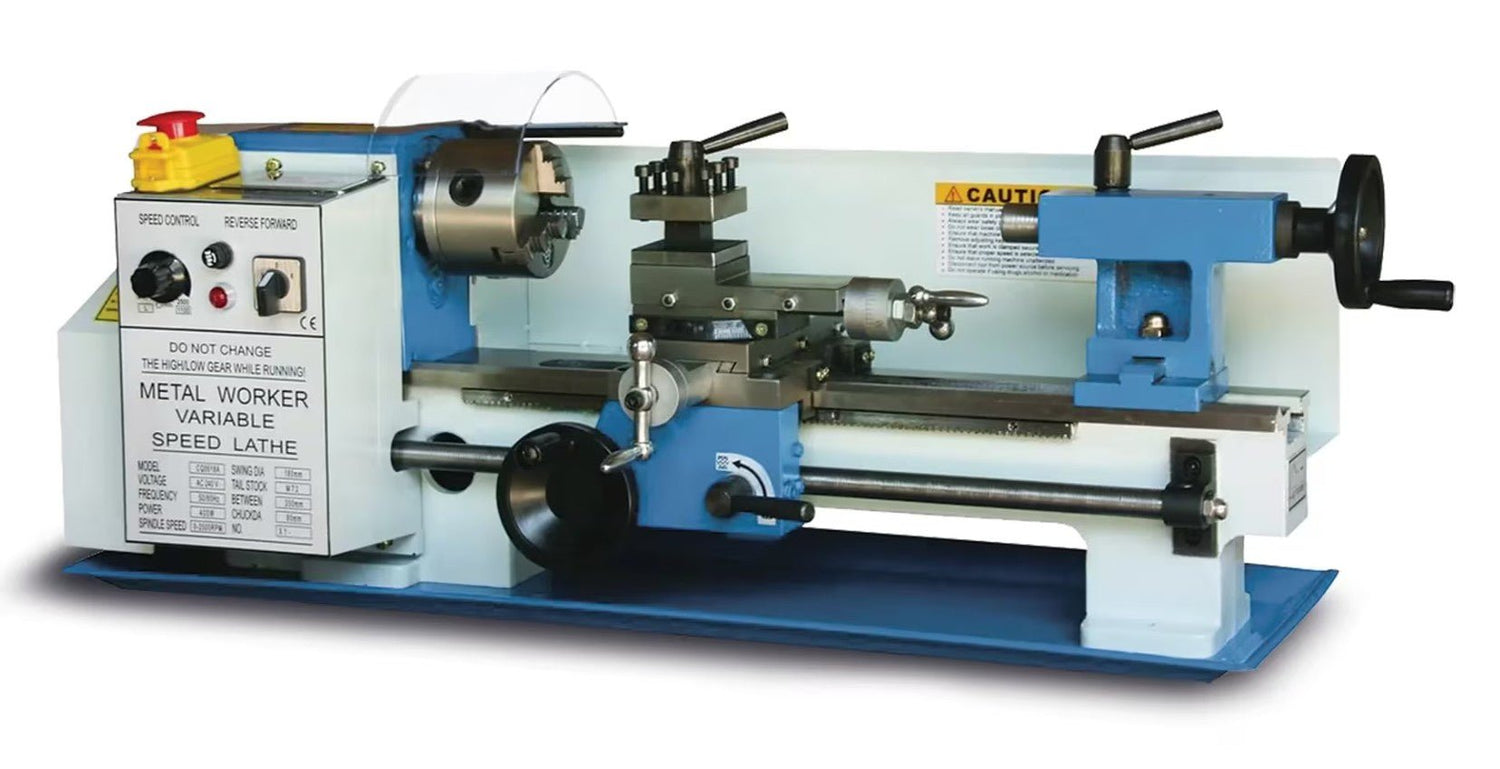

Baileigh Industrial PL-714VS-V2 Bench Top Lathe

Compact Precision Lathe: The Baileigh PL-714VS-V2 bench top lathe is engineered for precision turning of small parts in shops, schools, maintenance departments, and prototyping labs. Its compact footprint and industrial-grade construction make it ideal for space-limited environments.
Capacity & Control: Featuring a 7" swing over bed and 14" between centers, this lathe supports a range of small-work machining tasks. Variable speed control from low to high RPM provides flexible performance for different materials and operations.
Balanced Performance & Visibility: Built on a rigid cast-iron base with precision-ground bed ways to reduce vibration and enhance accuracy, the PL-714VS-V2 also includes a digital readout (DRO) for easy spindle speed monitoring.

Features:

• Swing capacity: Supports an 7" swing over bed for compact workpieces.

• Center distance: Provides 14" between centers for longer small stock turning.

• Motor power: Driven by a 0.75 HP, 110 V single-phase motor.

• Variable speed: Adjustable spindle speeds from 100–2,500 RPM for versatile machining.

• Spindle bore: Includes a 0.75" spindle bore to handle typical small bar stock.

• Digital readout: DRO displays spindle speed for precise operation.

• Cast-iron base: Heavy cast-iron construction and precision-ground bed ways enhance rigidity and stability.

• Threading: Capable of standard and metric thread cutting (12–52 TPI).

• Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.

Specifications:

• SKU | BA9-1228214

• Old Material Number | 1228214

• Accuracy | 0.001"

• Cross Slide Travel | 2.559"

• Digital Readout | Yes

• Distance Between Centers | 13.8"

• Gross Weight | 150lb

• Horse Power | 0.75hp

• Input Power | 110V

• Model Number | PL-714VS-V2

• Motor | 0.75hp

• Number of Spindle Speeds | Variable

• Old Material Number | 1228214

• Range of Inch Threads (TPI) | 12 - 52 T.P.I.

• Spindle Accuracy | 0.001

• Spindle Speeds | 100 to 2500 RPM

• Swing Over Bed | 7"

• Warranty | 1 Year
