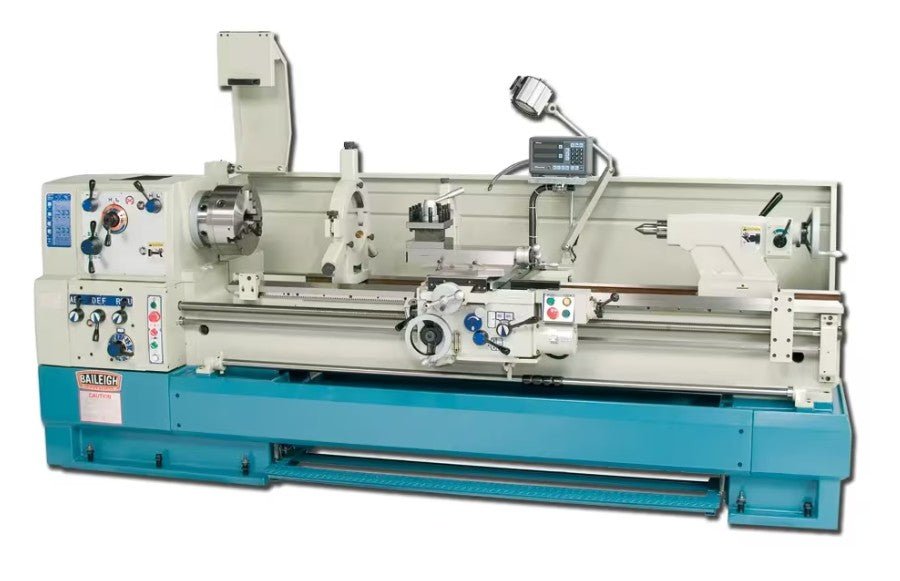

Baileigh Industrial PL-2080 Precision Metal Lathe

Heavy-Duty Precision: The Baileigh PL-2080 is a precision metal lathe engineered for large-scale turning tasks in industrial machine shops and production facilities. Its robust design and capacity make it suitable for heavy workpieces requiring accuracy and repeatability.
Capacity & Power: Featuring an impressive 20" swing over bed and 80” between centers, the PL-2080 accommodates long and oversized workpieces with dependable performance. A high-torque 15 HP industrial motor paired with a geared headstock ensures consistent cutting power across speeds.
Precision & Control: Built on a rugged cast-iron base with precision ground bed ways and a Mitutoyo 2-axis digital readout (DRO), this lathe minimizes vibration for cleaner finishes, long tool life, and precise setup feedback.

Features:

• Swing capacity: Supports an 20" swing over bed for large diameter workpieces.

• Center distance: Provides 80" between centers for long stock turning.

• Motor power: Driven by a 15 HP, 220 V 3-phase industrial motor.

• Speed range: Offers 20–1550 RPM spindle speeds via geared headstock.

• Spindle bore: Includes a 3.125" spindle bore to handle larger bar stock.

• Digital readout: Mitutoyo 2-axis DRO for accurate positioning and feedback.

• Cast-iron base: Heavy cast-iron frame and precision-ground ways ensure rigidity and stability.

• Standard accessories: Comes with 3-jaw universal chuck, 10" back plate, micrometer saddle stop, steady rest and follow rest, and longitudinal rapid traverse.

• Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.

Specifications:

• SKU | BA9-1006176

• Old Material Number | 1006176
• Center Height | 10"

• Compound Rest Travel | 10"

• Cross Slide Travel | 12.5"

• Digital Readout | Yes

• Distance Between Centers | 80"

• Gross Weight | 6050 lbs

• Horse Power | 15hp

• Input Power | 220V Three Phase

• Lead Screw Diameter | 1.5"

• Leadscrew Thread Pitch | 4 T.P.I.

• Longitudinal Feeds Imperial Qty Speed | 50 / .0014 in. - .0387 in. / rev.

• Longitudinal Feeds Metric Qty Speed | 50 / .037 - .983 mm / rev.

• Motor | 15hp

• Motor | 3 Phase

• Quill Taper | MT7

• Range of Cross Feeds (MMPR) | 50 / .0185 - .52 mm / rev.

• Speed | 20 – 1550 rpm

• Spindle Speeds | 20 to 1500 RPM

• Spindle Taper with Sleeve | MT5

• Swing Over Bed | 20"

• Taper in Tailstock Spindle | 2.9375"

• Threads Diametrical Quality Speed (D.P.) | 50 / 4-112 D.P.

• Threads Imperial Quality Speed (T.P.I.) | 60 / 2-112 T.P.I.

• Threads Metric Quality Speed (mm pitch) | 60 / .2 - 14 mm pitch

• Threads Modular Quality Speed (M.P.) | 50 / .2 - 7 M.P.

• Warranty | 1 Year
