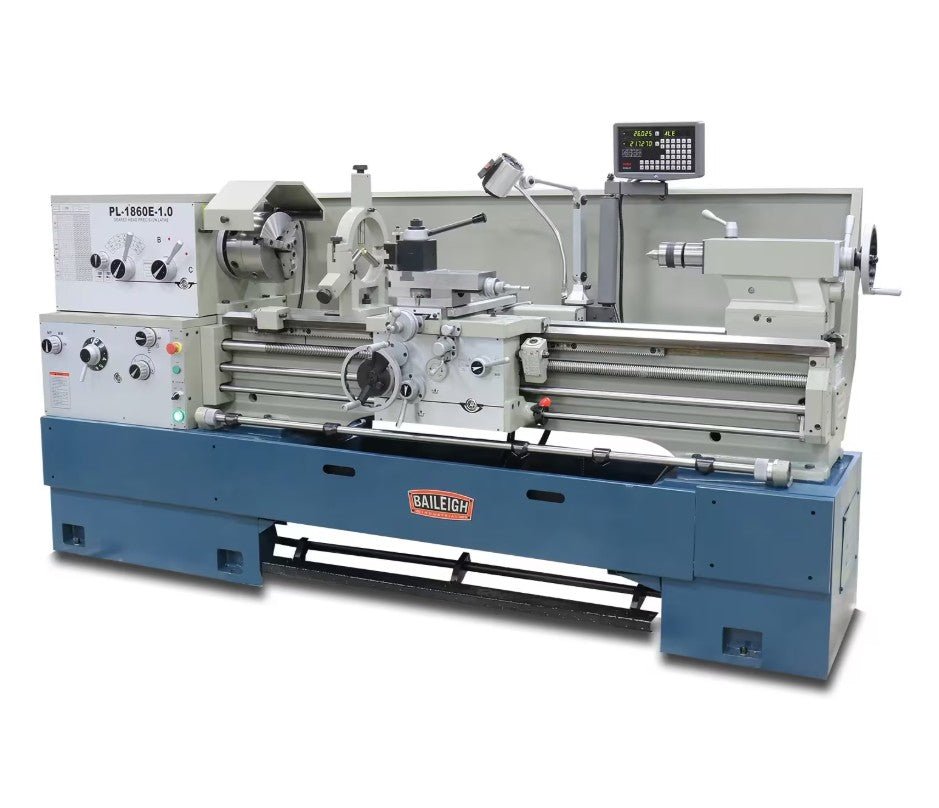

Baileigh Industrial PL-1860E Metal Lathe

Industrial Toolroom: The Baileigh PL-1860E is a robust metal lathe ideal for machine shops, schools, and industrial environments requiring reliable, large-capacity turning. It’s designed to handle long shafts and large workpieces with precision and repeatability.
Performance & Capacity: Featuring an 18" swing over bed and 60" between centers, this lathe accommodates oversized stock while the geared headstock delivers consistent torque and cutting performance.
Precision & Control: Built on a heavy cast-iron base with precision-ground ways and a 2-axis digital readout (DRO), the PL-1860E ensures accurate machining and smooth slide movement for high-quality results.

Features:

• Swing capacity: Provides an 18" swing over bed for large diameter workpieces.

• Center distance: Offers 60" between centers for long stock turning.

• Motor power: Equipped with a 7.5 HP, 220 V, 3-phase industrial motor.

• Speed range: Features 12 spindle speeds from 25–1800 RPM for versatile machining.

• Spindle bore: Includes a 3.125" spindle bore to accept larger bar stock.

• Digital readout: 2-axis DRO enhances positioning accuracy and setup speed.

• Bed construction: Heavy cast-iron base with precision-ground and polished ways for rigidity and smooth travel.

• Threading & feeds: Capable of standard and metric thread cutting with longitudinal feed options.

• Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.

Specifications:

• SKU | BA9-1016624

• Old Material Number | 1016624
• Assembled Dimensions | 116" x 45" x 66"

• Compound Rest Travel | 5.13

• Cross Slide Travel | 10-1/2"

• Digital Readout | Yes

• Distance Between Centers | 60"

• Gross Weight | 5650lbs

• Horse Power | 7.5hp

• Input Power | 220V Three Phase

• Lead Screw Diameter | 1.125"

• Leadscrew Thread Pitch | 4 TPI

• Longitudinal Feeds Imperial Qty Speed | 122 / .0015 in.-.0913 in. / rev.

• Modular Pitch Threads Range | 21 / .23 M.P.

• Motor | 7.5hp

• Motor Phase | Three

• Number of Spindle Speeds | 12

• Quill Taper | MT7

• Spindle Speeds | 25 to 1800 RPM

• Spindle Taper with Sleeve | MT5

• Swing Over Bed | 18"

• Threads Diametrical Quality Speed (D.P.) | 45 / 3-1/2 - 96 D.P

• Threads Imperial Quality Speed (T.P.I.) | 61 / 1-5/8 - 72 T.P.I

• Warranty | 1 Year
