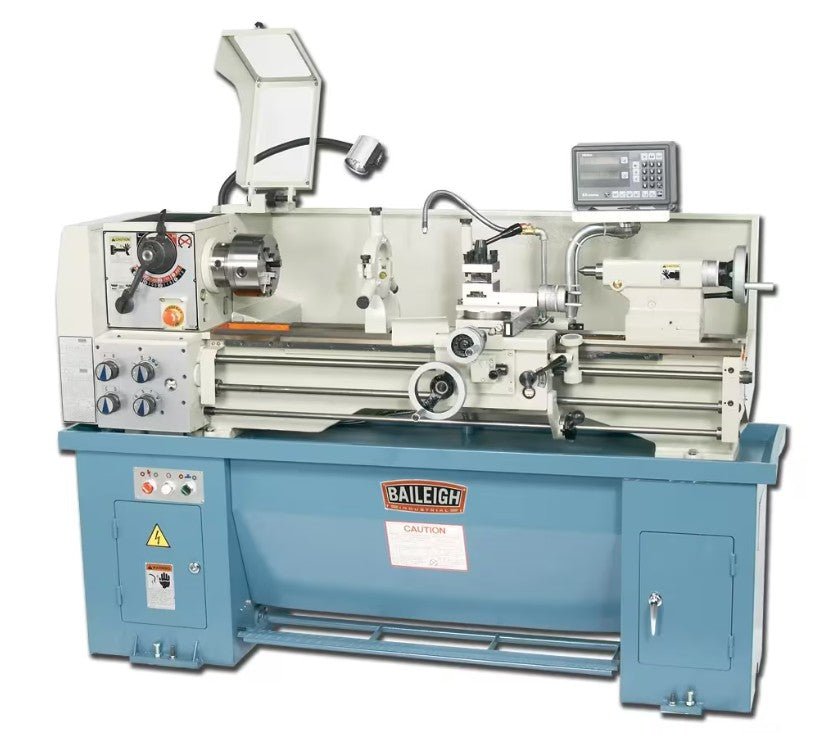

Baileigh Industrial PL-1340 Metal Lathe

Compact Industrial Performance: The Baileigh PL-1340 is a precision metal lathe engineered for machine shops, schools, and small to medium fabrication facilities where reliable turning and accuracy are essential. Its compact footprint delivers versatile performance in tighter spaces.
Capacity & Precision: With an 13” swing over bed and 40" between centers, this lathe tackles a wide range of turning tasks. The rugged cast-iron base and precision-ground bed ways ensure stability and consistent accuracy throughout machining operations.
Balanced Power & Control: Powered by a 2 HP, 220 V single-phase motor and equipped with a geared headstock, the PL-1340 provides smooth torque delivery across its speed range for reliable performance in steels, aluminum, and other common materials.

Features:

• Swing capacity: Offers an 13" swing over bed for medium-sized workpieces.
  Center distance: Provides 40" between centers for longer stock turning.

• Motor power: Driven by a 2 HP, 220 V single-phase motor for robust shop performance.

• Spindle bore: Includes a 1.5" spindle bore to accommodate common bar stock sizes.

• Speed range: Geared headstock with speeds from 70–2000 RPM for versatile turning.

• Digital readout: Comes with a Mitutoyo 2-axis DRO for precise reading and setup.

• Cast-iron base: Rigid cast-iron construction and precision-ground bed ways enhance stability and accuracy.

• Threading & feeds: Capable of standard and metric threading with gear-driven feeds.

• Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.

Specifications:

• SKU | BA9-1006057

• Old Material Number | 1006057
• Assembled Dimensions | 76" x 40" x 62"

• Center Height | 6.5"

• Compound Rest Travel | 2.6

• Compound Rest Width | 3

• Cross Slide Travel | 6.29"

• Cutting Tool Max Section | 0.625" x 0.625"

• Digital Readout | Yes

• Distance Between Centers | 40"

• Gross Weight | 1630 lbs

• Horse Power | 2hp

• Input Power | 220V Single Phase

• Lead Screw Diameter | 0.875"

• Leadscrew Thread Pitch | 8 TPI

• Longitudinal Feeds Imperial Qty Speed | 32 / .0020 in. - .5480 in. / rev.

• Longitudinal Feeds Metric Qty Speed | 32 / .052 - 13.92 mm / rev.

• Modular Pitch Threads Range | 21 / .2 in. 3 M.P.

• Motor HP | 2hp

• Motor Phase | Single

• Old Material Number | 1006057

• Quill Taper | MT5

• Speed (rpm) | 70 – 2000 rpm

• Spindle Speeds | 70 to 2000 RPM

• Spindle Taper with Sleeve | MT3

• Swing Over Bed | 13"

• Taper in Tailstock Spindle | 1.65"

• Threads Diametrical Quality Speed (D.P.) | 32 / 8-120 D.P.

• Threads Imperial Quality Speed (T.P.I.) | 31 / 4-56 T.P.I.

• Warranty | 1 Year
