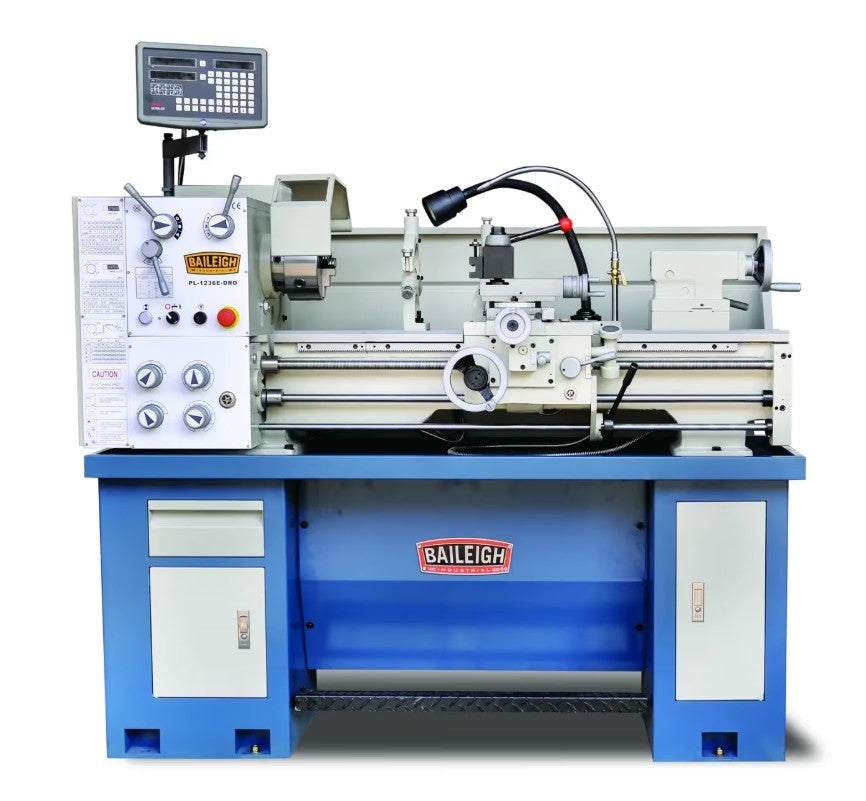

Baileigh Industrial PL-1236E-DRO 12"x36" Geared Head Metal Lathe, X/Y-Axis DRO

Industrial Construction: The Baileigh PL-1236E-DRO integrates a rugged geared head metal lathe platform with a factory-installed digital readout (DRO) system on the X and Y axes to improve measurement accuracy and reduce setup errors.
Precision & Performance: Featuring a 2 HP, 220 V single-phase motor and a geared head with a geared speed range from approximately 70 to 1400 RPM, this lathe delivers smooth torque and consistent power across a wide range of turning operations.
Shop Versatility: Built with a rigid cast-iron frame and precision-ground ways, the PL-1236E-DRO supports a variety of machining tasks — from routine turning and facing to threading and contouring — making it suitable for small fabrication shops, maintenance departments, and training environments.

Features:

• Swing Capacity: This lathe has a 12″ swing over the bed for handling a range of workpiece diameters.

• Between Centers: This machine provides 36″ between centers for longer workpieces.

• Motor Power: A 2 HP motor supplies consistent machining power.

• Power Requirement: The lathe operates on 220 V single-phase shop power.

• Variable Speed: The geared head delivers a range of spindle speeds approximately 70 to 1400 RPM for versatile turning.

• Digital Readout: Integrated digital readout (DRO) on X and Y axes enhances precision and repeats accuracy.

• Spindle Bore: This lathe has a 1.50″ spindle bore to accept larger bar stock.

• Spindle Taper: The spindle uses an MT3 taper for standard tooling.

• Construction: Rigid cast-iron frame and precision-ground bed ways minimize vibration and maintain alignment.

• Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.

Specifications:

• SKU | BA9-1016617

• Old Material Number | 1016617
• Assembled Dimensions | 69" x 44" x 64"

• Digital Readout | Yes

• Distance Between Centers | 36"

• Gross Weight | 1420

• Horse Power | 2hp

• Input Power | 220V Single Phase

• Leadscrew Thread Pitch | 8 TPI

• Length of Gap | 6"

• Motor Phase | Single

• Range of Cross Feeds (IPR) | 0.007 in. - 0.0187 in./rev

• Range of Inch Threads (TPI) | 4 - 56 T.P.I.

• Range of Longitudinal Feeds (IPR) | 0.002 in. - 0.0548 in./rev

• Range of Metric Threads | 0.4 - 7 mm

• Spindle Speeds | 70 to 1400 RPM

• Spindle Taper | MT3

• Spindle Travel | 4"

• Swing Over Bed | 12"

• Warranty | 1 Year
