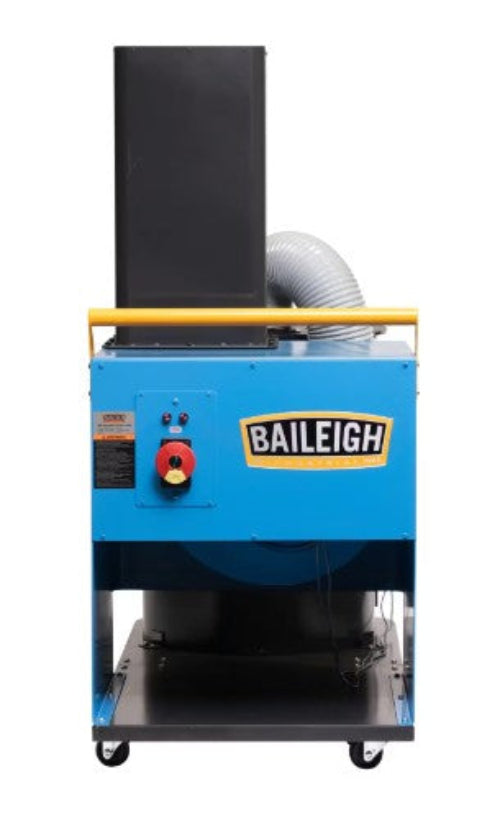

Baileigh Industrial MWDC-550H 5HP Wet Dust Collector, 460V 3PH

The Baileigh MWDC-550H is the 460V/3-phase version of Baileigh’s 5 HP wet dust collector, purpose-built for shops handling reactive or fine-particle metals where dry filtration falls short. Its water-based separation captures sub-5-micron dust and polishing fumes, while 3,100 CFM of airflow and 15,151 FPM of velocity provide strong extraction at a quiet 75dB from 5 feet. A 45L/70L capacity drum with an easy-view water level window and drain valve keeps maintenance straightforward. Built to support NFPA 660 combustible dust compliance, the MWDC-550H draws just 4.5A at 460V (10A breaker) and includes a 1-year parts warranty plus Baileigh Lifetime Technical Support.

Features:

• 460V/3-phase operation draws just 4.5A full load amps, easing demand on shop electrical service

• Wet separation captures sub-5-micron particles and polishing fumes that dry filters can miss

• Helps reduce spark ignition and fire risk when collecting reactive or combustible metal dust

• 3,100 CFM airflow and 15,151 FPM velocity match Baileigh’s 230V wet collector for extraction power

• Runs at just 75dB from 5 feet for a quieter shop floor

• 45L/70L capacity drum with easy-view water level window simplifies monitoring

• 10A recommended breaker size simplifies electrical planning for 460V shops

• Supports a shop’s path to NFPA 660 combustible dust compliance

• 1-year parts warranty plus Baileigh Lifetime Technical Support round out the package

Specifications:

• SKU | BA1-12451

• Amp Draw (amps) | 6.5

• Filter Type | 5 Micron Filter paper, Anti-Spark/Fireproof

• Horse Power | 5

• Input Power | 460V Three Phase

• Maximum CFM | 3103

• Model Number | MWDC-550H

• Motor Phase | Three

• Motor Voltage | 460

• Number Ports | 1

• Port Size | 5"

• SAP Gross Weight | 541 lbs

• SAP Net Weight | 494 lbs

• UPC | 019907009894

• Warranty | 1 Year
