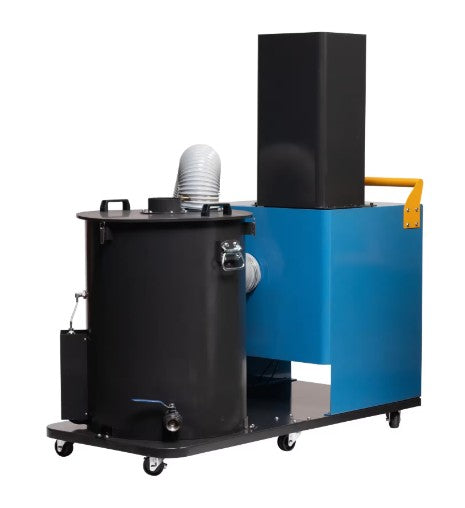

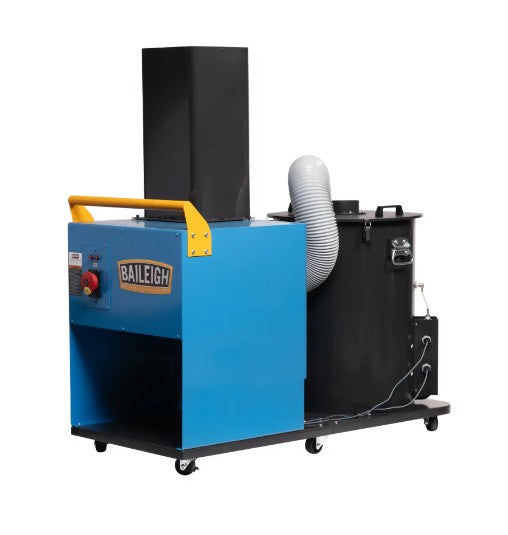

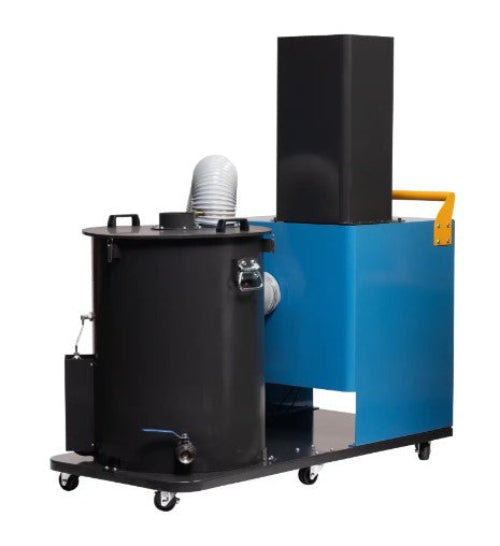

Baileigh Industrial MWDC-550 5HP Wet Dust Collector, 230V 3PH

Some metals don’t play well with dry filtration. Aluminum, titanium, magnesium alloys, and other reactive or fine-particle materials can clog dry filters or create a spark and fire hazard. The Baileigh MWDC-550 is a 5 HP wet dust collector purpose-built to handle exactly that kind of work. Water-based separation captures sub-5-micron particles and polishing fumes that many dry filters miss, while 3,100 CFM of airflow and 15,151 FPM of velocity keep extraction strong — all at a quiet 75dB from 5 feet. A 45L/70L capacity collection drum with an easy-view water level window and drain valve keeps monitoring and maintenance simple. Designed to support a facility’s NFPA 660 combustible dust compliance program, the MWDC-550 runs on 230V/3-phase power (9A FLA, 20A breaker) and is backed by a 1-year parts warranty plus Baileigh Lifetime Technical Support.

Features:

• Wet separation system captures sub-5-micron particles and polishing fumes that can slip past dry filters

• Helps reduce spark ignition and fire risk when collecting reactive or combustible metal dust

• 3,100 CFM airflow and 15,151 FPM velocity deliver strong extraction for demanding polishing operations

• Runs at just 75dB from 5 feet — quieter than Baileigh’s dry dust collector line

• 45L/70L capacity drum with easy-view water level window simplifies monitoring

• Supports a shop’s path to NFPA 660 combustible dust compliance

• 230V/3-phase operation with 9A full load amps and a 20A recommended breaker

• Removable-key start/stop switch doubles as a multi-function E-stop for operator safety

• 1-year parts warranty plus Baileigh Lifetime Technical Support for long-term uptime

Specifications:

• SKU | BA1-12450

• Filter Type | 5 Micron Filter paper, Anti-Spark/Fireproof

• Horse Power | 5

• Input Power | 230V Three Phase

• Maximum CFM | 3103

• Model Number | MWDC-550

• Motor Phase | Three

• Motor Voltage | 230

• Number Ports | 1

• Port Size | 5"

• SAP Gross Weight | 541 lbs

• SAP Net Weight | 494 lbs

• UPC | 019907009832

• Warranty | 1 Year
