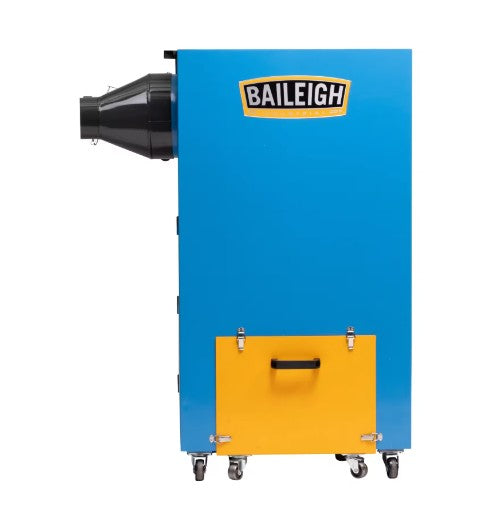

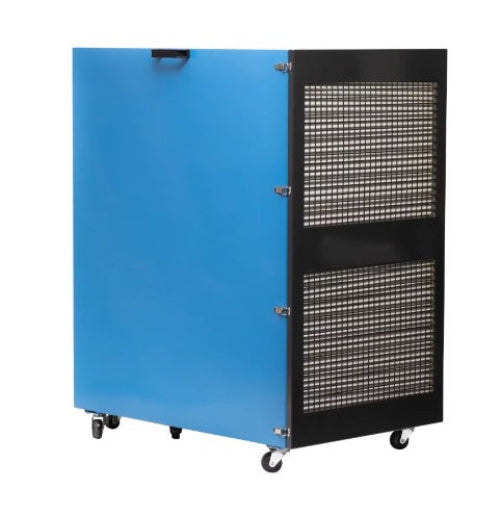

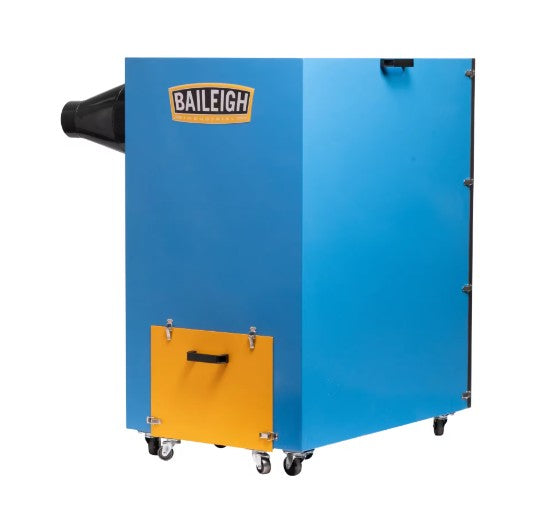

Baileigh Industrial MDC-550H 5HP Dry Dust Collector, 460V 3PH

Not every shop runs on 230V. The Baileigh MDC-550H is the 460V/3-phase version of Baileigh’s UL 1017-certified 5 HP dry dust collector, built for fabrication shops, precision machining operations, and MRO facilities running higher-voltage service. Two 5-micron paper filters capture 84.3% of 1–3 micron particles and 95.4% of 3–10 micron particles, while 3,583 CFM at the 10" inlet (1,487 CFM at 5") and up to 10,889 FPM of velocity move dust efficiently away from the work area. The dual 5" inlet port design supports two wide-belt sanders or polishing stations from a single unit, and the 126L fireproof bag keeps disposal simple. It draws just 7A at 460V (15A breaker) and is backed by a 1-year parts warranty plus Baileigh Lifetime Technical Support.

Features:

• 460V/3-phase operation draws just 7A full load amps, easing demand on shop electrical service

• 5 HP motor and 3,583 CFM airflow (10" inlet) provide the same strong extraction as Baileigh’s 230V dry collector

• Dual 5" inlet ports allow one collector to run two wide-belt sanders or polishing stations at once

• Two 5-micron paper filters capture 95.4% of 3-10 micron particles for cleaner shop air

• UL 1017 certification supports NFPA 660 compliance and electrical safety confidence

• 126L fireproof, non-woven dust collection bag simplifies safe disposal

• 15A recommended breaker size simplifies electrical planning for 460V shops

• Removable-key start/stop switch functions as a multi-function E-stop

• 1-year parts warranty plus Baileigh Lifetime Technical Support round out the package

Specifications:

• SKU | BA1-12449

• Amp Draw (amps) | 6.5

• Filter Type | 5 Micron Filter paper, Anti-Spark/Fireproof

• Horse Power | 5

• Input Power | 460V Three Phase

• Maximum CFM | 3700

• Model Number | MDC-550H

• Motor Phase | Three

• Motor Voltage | 460

• Number Ports | 2

• Port Size | 5"

• Product Type | Machines

• SAP Gross Weight | 386 lbs

• SAP Net Weight | 318 lbs

• UPC | 19907085140

• Warranty | 1 Year
