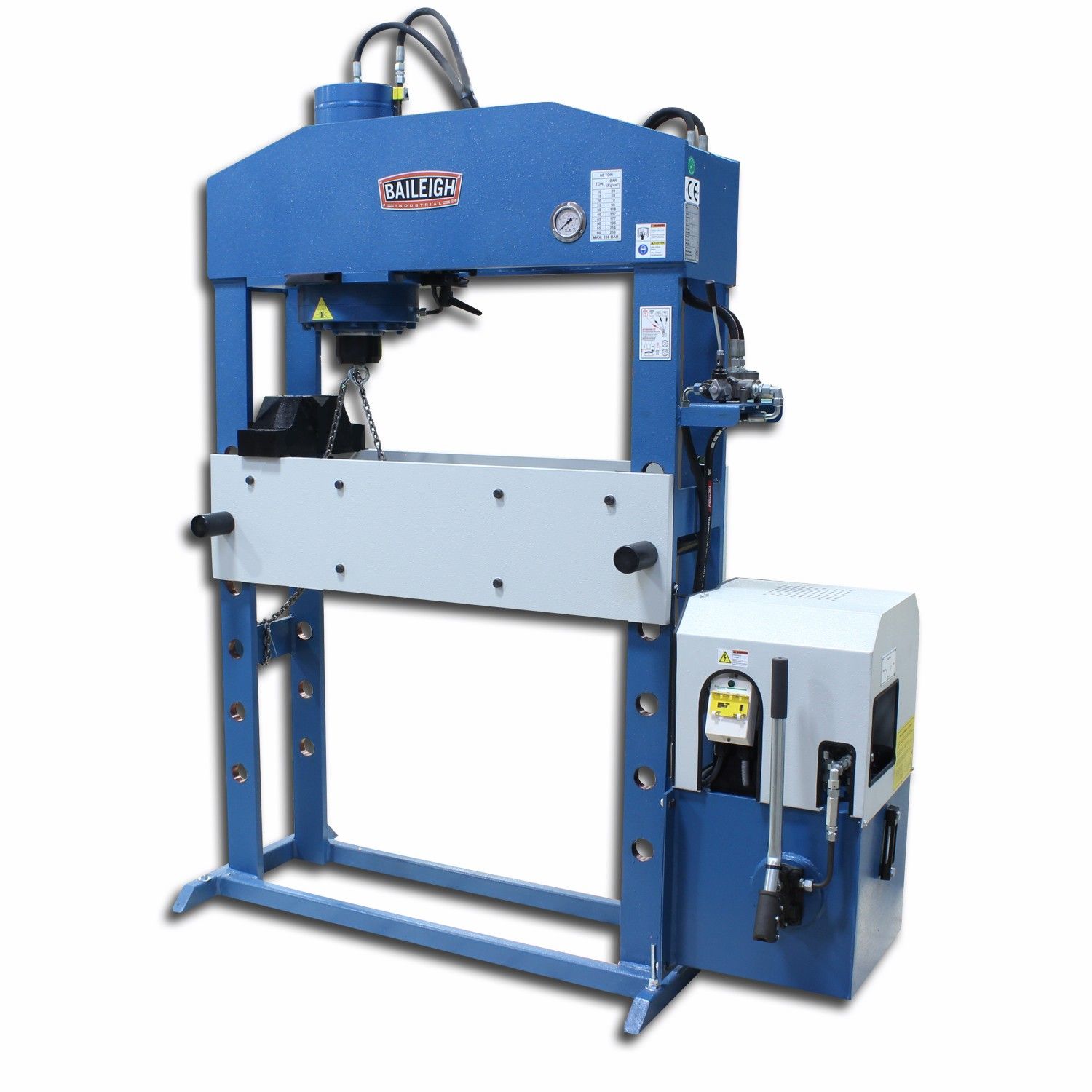

Baileigh Industrial HSP-66M-HD 66 Ton Electric/Hydraulic Shop Press

Weighing in at just over 1750 pounds, this motorized H-frame press is built to last. Its welded .375” plate steel structure can handle all the hydraulic system’s force without flexing.

Features:

• 66 tons of hydraulic force.

• 40.94" working width.

• 9.85" cylinder stroke.

• Runs on 220 volt 3-phase power.

• Robust 5.3 hp motor runs on has 2 working speeds: rapid descent and slow approach.

• Hand pump gives you the option for even finer control.

• Cylinder moves left or right within the framework to deliver pressure on off-center parts.

• 7.08" diameter cylinder automatically returns to the top once the job is done.

• 53.34" table fabricated to exacting tolerances.

• Table features 2 support pins that are 2” in diameter, letting you lock the table in at the correct working height.

Includes:

• Pressure regulator
• Ram cap

Specifications:

• Stock Number | BA9-1012402

• Model Number | HSP-66M-HD

• Warranty | 1 Year

• Gross Weight | 2360

• Net Weight | 2360

• Cylinder Movable | Yes

• Maximum Pressure | 3814 psi

• Minimum Return Speed | .393" / sec.

• Piston Diameter | 3.94"

• Speed | 3000 rpm
