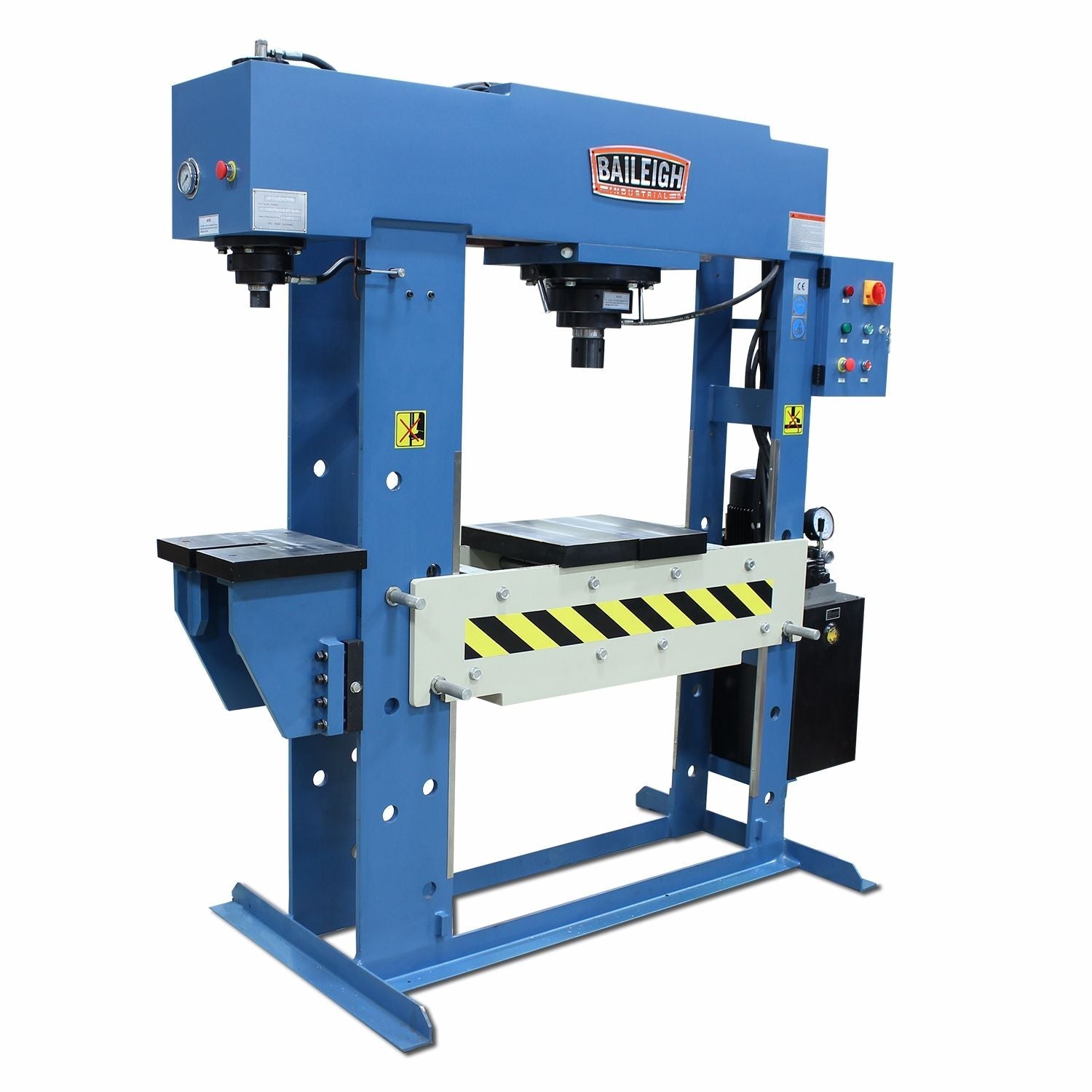

Baileigh Industrial HSP-60M-C Two Station Hydraulic Press

If you’ve outgrown your pneumatic press, this Hydraulic Workshop Press offers gives you the extra power of a 5.25 hp motor and the rigid accuracy of a fully-welded heavy steel plate frame. Another plus of the HSP-60M-C is the ability to use a second 24 ton station with an open C-frame design. Both presses come in one compact design.

Features:

• Unique two station design

• 60-ton capacity on main press

• 24-ton capacity on side press

• 41.25" working width on main press

• 7.5" cylinder moves left and right within the frame, ideal for off-center parts

• Controlled by piston-style hydraulic pump

• C-Frame Hydraulic Press includes 2-piece V-block set

• Pressure gauge comes standard on both presses

• Welded steel structure withstands the machine’s full force without flexing

• Baileigh covers this Hydraulic Workshop Press with a 1-year parts warranty as well as lifetime technical support by phone

Specifications:

• Stock Number | BA9-1019290

• Approx. Pressure | 24-Ton and 60-Ton

• Model Number | HSP-60M-C

• Warranty | 1 Year

• Weight | 2960 lbs

• Gross Weight | 2960 lbs

• Net Weight | 2960 lbs

• Cylinder Movable | No
