MaxiTPMS TS900

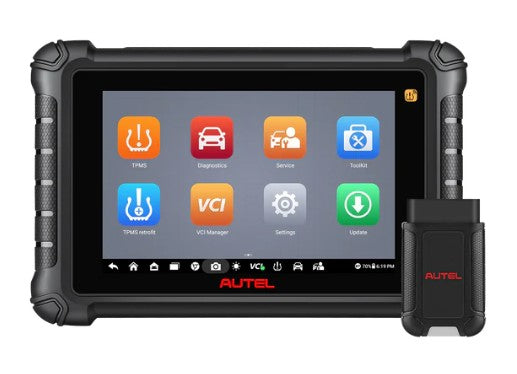

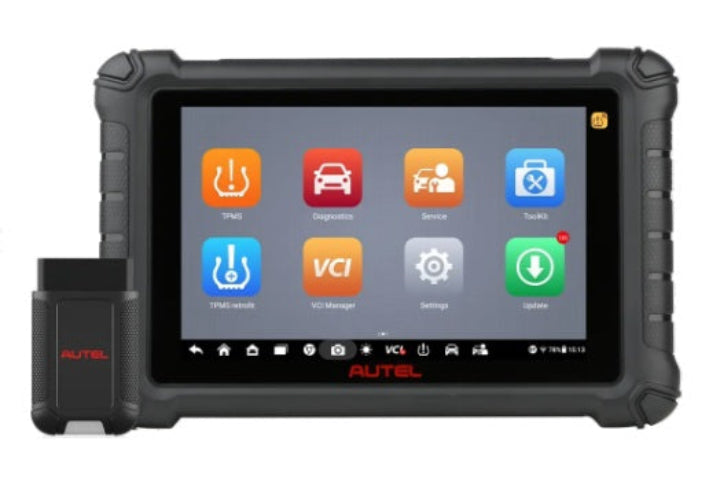

TS900 Upgrade Of TS608: The Autel MaxiTPMS TS900 TPMS tool is a versatile device that combines TPMS functionality and diagnostics. It features a wireless touchscreen tablet that offers a range of features including complete TPMS programming, relearning, and activation, more than 40 services, and OE-level diagnostics. Additionally, it offers new features such as WiFi printing, pre and post scans. The TS900 TPMS scan tool is also compatible with the Autel MX Sensor BLE, which comes preprogrammed for Tesla vehicles.

Complete TPMS Solution: The Autel TS900 TPMS tool offers the same TPMS features as the MS906 Pro-TS scanner but cost lower. It includes TPMS check, diagnostics, sensor programming, relearning, and the ability to activate 99% of TPMS sensors available in the market. The TPMS application supports various TPMS sensors, including BLE sensors that are compatible with Tesla vehicles. Please note that the Autel TS900 scanner can only program Autel MX sensors.

Bi-Directional / Active Test: The Autel TS900 bidirectional scan tool offers the same ACTIVE TEST feature as the Elite II PRO, MS909, MS919, and MS Ultra scanners. With the TS900 scan tool, you can perform real active tests by sending commands to the vehicle's ECU to activate various actuators. This includes tests such as ABS pump, EVAP test, fuel pump, injector test, cooling fan test, window/door locks/horn, GR test, A/C clutch test, VGT turbo calibration, and more.

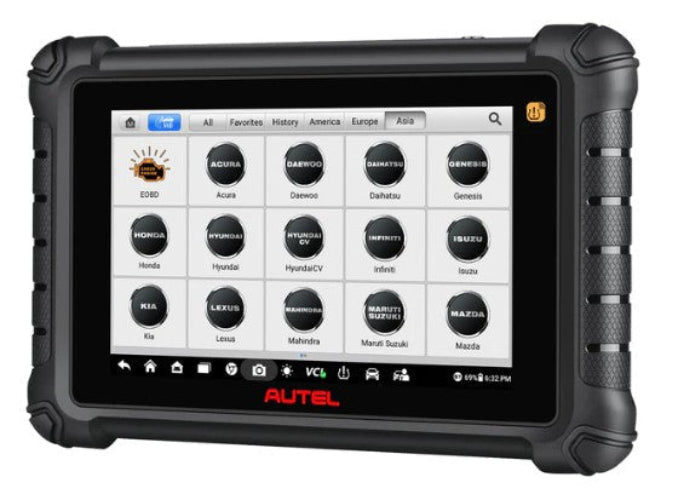

OE-Level All System Diagnosis: The Autel TS900 diagnostic scanner easily conduct functional tests and retrieve valuable data such as trouble codes, event codes, and live data for multiple vehicle control systems including engine, transmission, ABS, and more. The scanner provides various display modes, allowing for comprehensive analysis. Additionally, the device saves related historical records, which can significantly save time when diagnosing similar issues in the future.

40+ Services: The Autel TS900 TPMS tool offers 40+ service functions for 150+ brands and 10,000+ models. It provides quick access to vehicle systems for scheduled maintenance tasks such as oil and service light reset, electronic parking brake reset, brake bleed, airbag reset, TPMS, SAS, IMMO, and seat occupancy calibration.

Note: The TS900 is US Version, and it can only be shipped from the US.

Autel MaxiTPMS TS900 Features:

• Comprehensive coverage for TPMS
• Program AUTEL MX-Sensors to replace 99% of TPMS sensors on the vehicles on the road today.
• Industry-leading Relearn-by-OBD vehicle coverage.
• Compatible with 315MHz, 433/434MHz and 2.4GHz (BLE) frequency TPMS sensors.
• Cover U.S., European, and Asian vehicles, 1996 and newer to provide professional diagnostic service.
• Support all system diagnostics (including Read and Erase codes, View Freeze Frame data, View and Graph Live Data, and Perform bi-directional Active Tests and Special Functions).
• Extensive Service Menu with direct access to over 38+ maintenance services.
• Supports the latest communication protocols, including CAN FD/DoIP.
• Generate Detailed Pre- and Post-Scan Reports. Cloud-based Report Management allows you to view, save, print, and share reports on mobile phones, tablets, and computer browsers.
• Auto-VIN technology automatically identifies vehicle make, model, and year.
• 8-inch touchscreen with 1024 x 600 resolution display and 8-megapixel rear camera.
• 64GB onboard memory for fast processing and access to the software.
• Android 11 operating system for fast boot-up and operation speed.

MaxiTPMS TS900 Specifications:

TABLET:

Recommended Use |  Indoor

Operating System | AndroidTM 11

Processor | Quad-Core (1.8 GHz)

Memory |  4GB RAM & 64 GB ROM

Display | 8" LCD screen with 1280 x 800 resolution

Rear Camera | 8 MP

Connectivity | Wi-Fi, USB 2.0, Type C, BT, Mini SD Card (supports up to 64 GB)

Sensors | Ambient Light Sensor For Brightness Auto Changing

Audio Input / Output | Input: N/A; Output: Buzzer

Power and Battery | 3.7 V/7700 mAh Lithium Polymer Battery, Charges via 5 V DC Power Supply

Tested Battery Life | Around 7 hours of continuous use

Battery Charging Input | 5 V/3 A

Power Consumption | Approx 600 mA (LCD on with default brightness, Wi-FI on) @3.7 V

Operating Temp | 0 to 50°C (32 to 122 °F)

Storage Temp | -10 to 60°C (14 to 140 °F)

Operating Humidity | 5% to 95% non-condensing

Dims | 1259.87 mm (10.23") x 168.98 mm (6.65") x 33.60 mm (1.32")

Net Weight | 3 lbs

Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD

V150:

Communication | BR + EDR

Wireless Frequency | 2.4 GHz

Input Voltage Range | 8 to 30 V DC

Supply Current | 150 mA @ 12 V DC

Operating Temp | 0 to 50°C (32 to 122 °F)

Storage Temp |  -10 to 60°C (14 to 140°F)

Dims | 77.47 mm (3.05") x 46.8 (1.84") x 21.38 (.84")

Weight | 52 lbs
