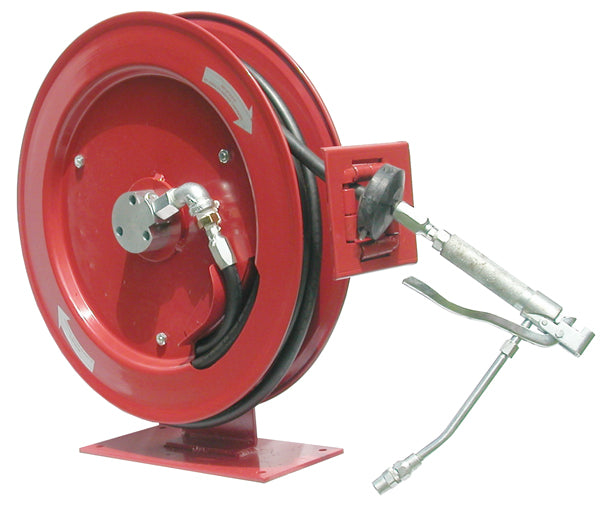

ATD 8197 Grease Reel Assembly With Heavy-Duty Reel

Includes:

• Heavy-duty basic reel with steel rollers and heavy steel mounting base
• 40 ft. x 1/4" grease delivery hose
• Ball Stop
• ATD-5218 High pressure grease control valve
• 1/2" NPT(f) reel connections

Features:

• Type: High Pressure - 7,500 psi
• Inlet / Outlet: 1/2"
• Sheath Width Outside to Outside: 6-1/2"
• Sheath Width Inside to Inside: 6.0"
• Sheath Depth: 4.0"
• Diameter of Sheath: 20"
• Base: 12-3/4" x 6"
• Base Thickness: 1/4" plate steel with 4-3/8" dia. mounting holes for easy mounting of the base to any support column, rafter or floor
• Length of Arm: 15"
• Delivery hose opening has solid metal rollers with a diameter of 2-1/8" x 2-1/8"
• Weight: 80 lbs
• Grease, oil, ATF, antifreeze, water, air
